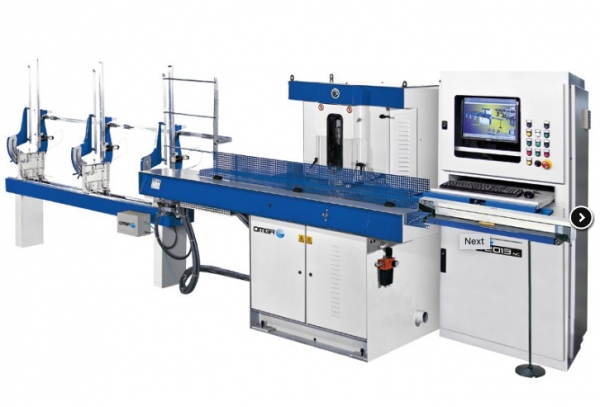

Omga Model V 2103 NC

• Omga Model V 2103 NC
• Data Sheet Motor power: 2 x 3HP
• Arbor speed RPM: 3200
• Dust Chute: 1 x 3" - 1 x 6"
• Saw blade bore: 30 mm
• Auto mitre position: 45 - 30 - 22 1/2
• Max cutting height: 2 3/8"
• Max cutting width: 2 3/8"
• Max feed stroke: 47"
• Saw blades Diameter: 300 mm
• General Information:

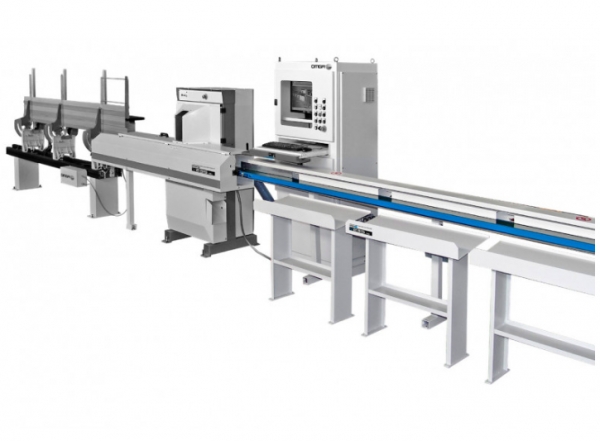

• Integrated system for elevated production of picture and photo frames as well as any other component which is assembled by way cutting the ends at an angle
• System is fitted with a guidance computer (PC) which makes the machine more productive and flexible, for an improved quality of the finished product

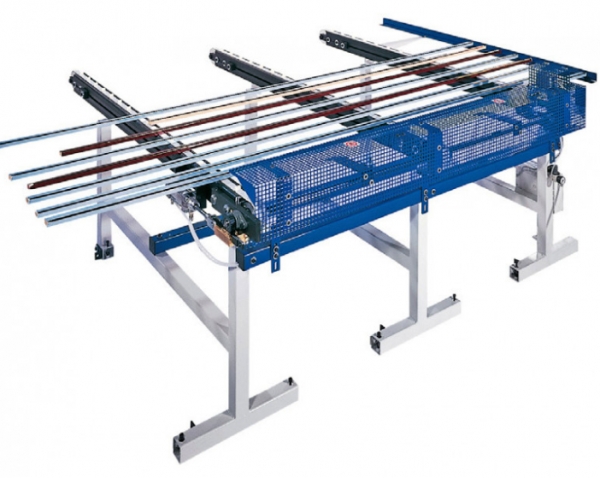

• The machine counts with a hopper feeder (available in both Horizontal and Vertical versions) which allows it to function completely unattended
• Key Features:
• Optimized Cutting By inputting the data relating to the length of the moulding along with the cutting list, the machine is able to select the best sequence automatically, maximizing the material's yield
• High speed feed carriage allows large scale production in any circumstance
• Zero setup time for changes in the cutting list
• Output of the system ranges from 1000 to 1500 pieces per hour
• Easy User Interface

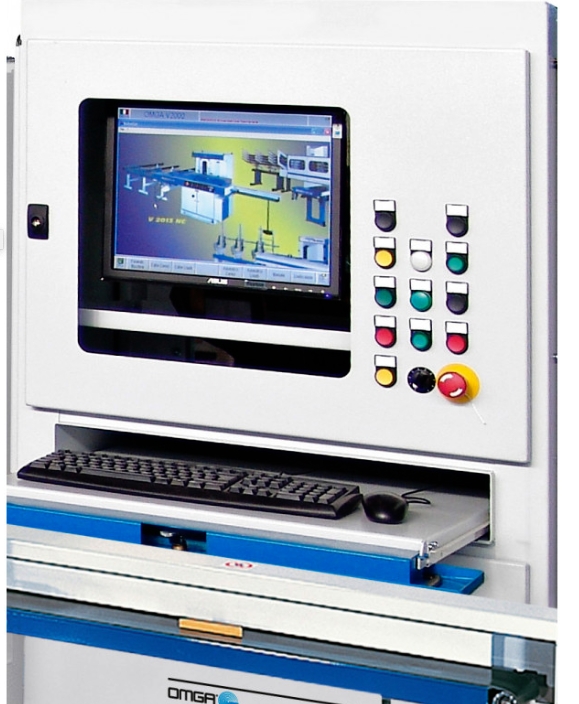

• Onboard computer is equipped with an 8" monitor
• A step by step full graphic display makes it easy for the operator to select the required operation
• On screen diagnosis
• Angle of the 2 saw blades is automatically adjusted by the computer based on the programmed type of frame (Square, Rectangular, Hexagonal or Octagonal)
