Omga V 235 NC
Machine Available
Stock #813620N

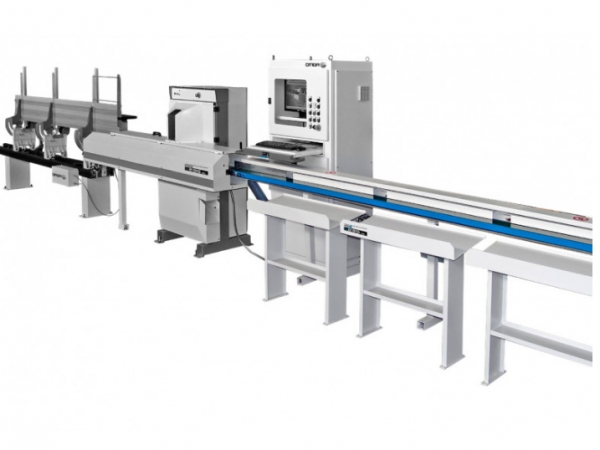

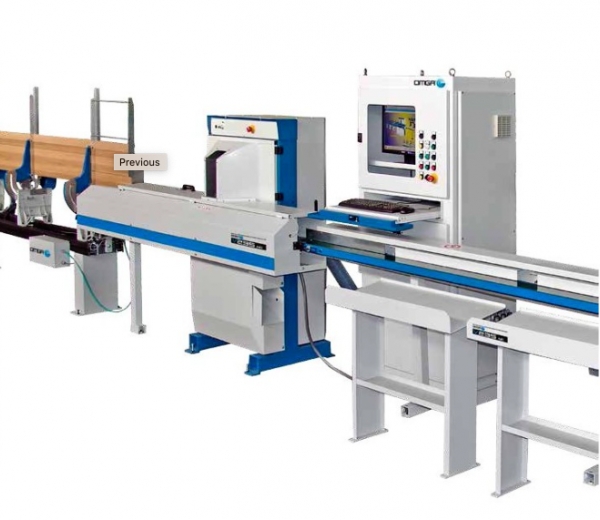

New- Omga Model V 235 NC
- Data Sheet
- Motor power: 4HP
- Arbor speed RPM: 3200
- Dust Chute: 2x3"
- Saw blade bore: 30 mm
- Max cutting height: 2 3/4"
- Max cutting width: 3 9/16"
- Max feed stroke: 47"
- Saw blades Diameter: 350 mm
- General Information:
- System is well suited for elevated production of picture and photo frames as well as any other component which is assembled by way of mitering the ends
- System is fitted with a guidance computer which makes the machine more productive and flexible, for an improved quality of the finished product

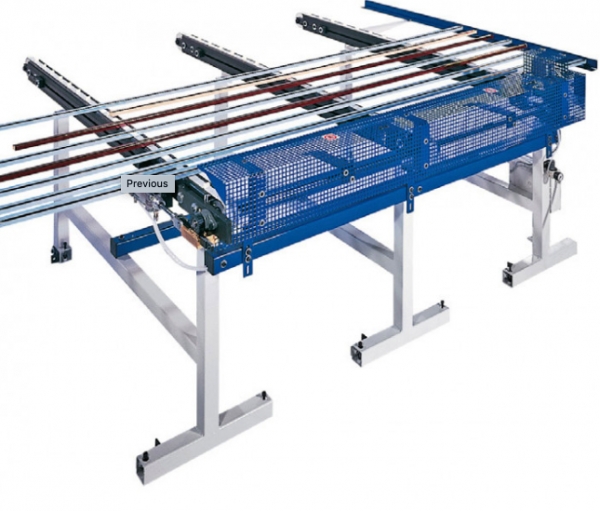

- The machine counts with a hopper feeder (available in both Horizontal and Vertical versions) which allows it to function completely unattended
- Key Features:
- Optimized Cutting By inputting the data relating to the length of the moulding along with the cutting list, the machine is able to select the best sequence automatically, maximizing the material's yield
- Higher Production
- Zero setup time for changes in the cutting list
- Output of the system ranges from 1000 to 1500 pieces per hour
- Easy User Interface

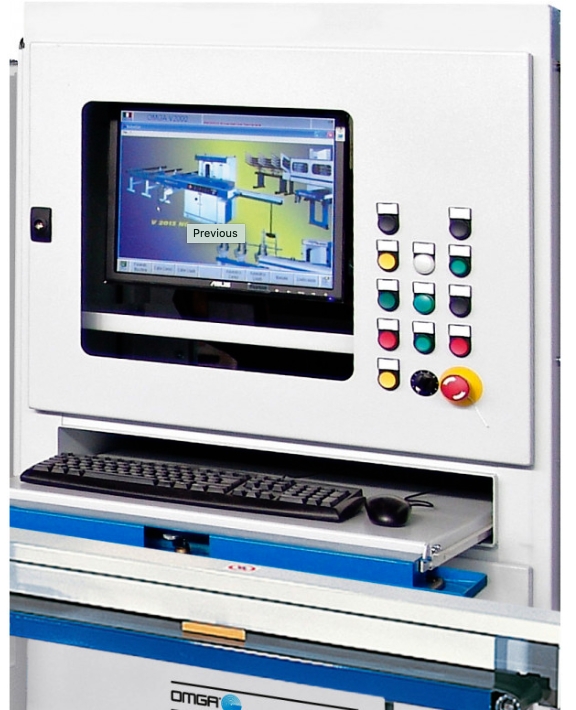

- Onboard PC with its 19" monitor, allows all the messages that the operator requires, to be fully and constantly displayed in the desired language
- Step by step full graphic display makes it easy for the operator to select the required operation
- On the screen diagnosis
- Two 14" saw blades make it possible to attain a considerable cutting capacity.
