Maggi Model Evolution 1000 EVO CNC Machining Center
Machine Available
Stock #57910N

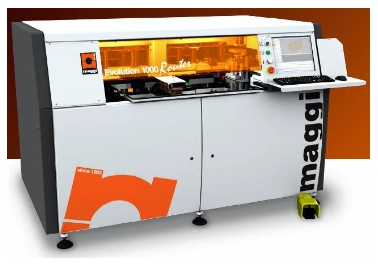

New- Maggi Model Evolution 1000R CNC Machining Center
- Workpiece Dimensions:
- Min/Max (mm) X 300/10,000 mm
- Y 75/1000 mm (With grooving saw min. 120 mm)
- Z 8/60 mm

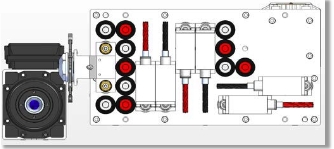

- Drilling Configuration:
- 11 Vertical Drills
- 6 Horizontal Drills (All on 32 mm Centers)
- 1 Saw Blade
- Router:
- (1) 3.6 kW Electrospindle, 18,000 RPM
- Grooving Saw X-Axis Only
- Positioning Speed:
- X 42 m/min
- Y 42 m/min (3 Brushless Servo Motors)
- Z 10 m/min
- Drilling Depth 60 mm Maximum

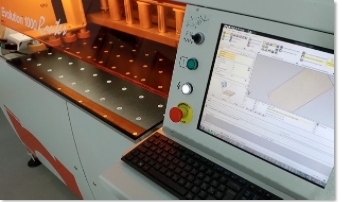

- PC:
- 17" Color Monitor
- OS Windows 7 Professional
- 2 GB Ram
- 500 GB HD
- (6) USB Ports

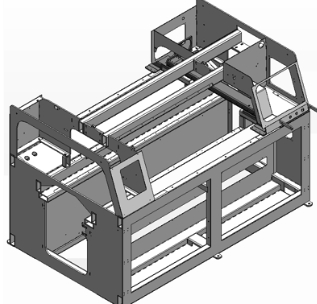

- Frame and Design:
- Heavy duty, 8mm thick, steel frame
- Built to withstand intensive work over time
- Quality components, like the brushless drive motors, ensure the greatest reliability and stability
- Software:
- CNC software, developed by TPA, a leading company in the field
- CAD 4 program for the creation of technical drawings
- Job list creation
- Axes management
- Diagnostics
- Machine data editors to visualize and manage the virtual tools available
- User friendly and compatable with most CAD programs since it is an open software
- Options:
- Motorized Automatic Side Aligner System
- Upgrade to TPA/CAD "PRO" CNC software on board
- Additional TPA/CAD "LIGHT" software license to create programs from remote work station
- Additional TPA/CAD "PRO" software license to create programs from remote work station
- Barcode Scanner with software
- Post Processor Specifications
