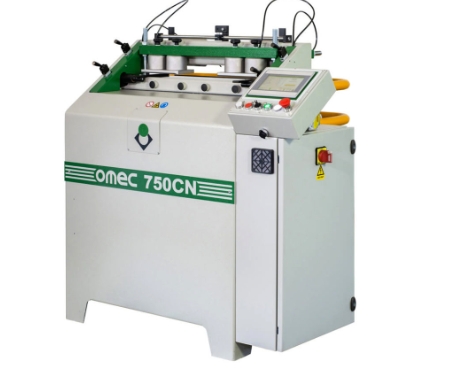

Omec Model 750CN Automatic Dovetail Machine

• Omec Model 750CN Automatic Dovetail Machine
• Technical Data:
• On board machine installed power: 3.2 Kw
• Working pressure: 0.7 M Pascal
• Spindles: 1 n˚
• Spindle revolutions: 21,000 rpm
• Center tot center of indents: variable or fixed
• Drawers production: 60 n/h
• Workpiece Limits
• Lengths: Min. 200mm Max. 1500mm
• Width: Min. 60mm Max. 530mm
• Indent Height: Min. 8.5mm Max. 16mm
• Front Thickness: Min. 6mm Max. 50mm
• Side Thickness: Min. 8mm Max. 40mm
• Standard Equipment
• Fixed and Variable Pitch
• 60 drawers per hour
• Drawer height Min 2.36″(60mm) Max 15.74″ (400mm)
• Board Thickness Max .31″ (8mm ) Max 1.18″ ( 30 mm )
• Integral Carbide cutter installed on the machine
• Tool Kit for adjustments and maintenance
• Pneumatic clamps
• 20” capacity
• Operator to input the dimensions of the parts to be machined and designs the dovetail pattern to best suit the material dimension and the desired effect of the operator
• Working on one inch centers is no longer a requirement as the CNC technology spaces the centers to meet your needs
• Blowout is minimized as the speed of cut can be adjusted to both accommodate the material and the size of the joint
• 7″ touchscreen, up to 600 can be saved for later recall
