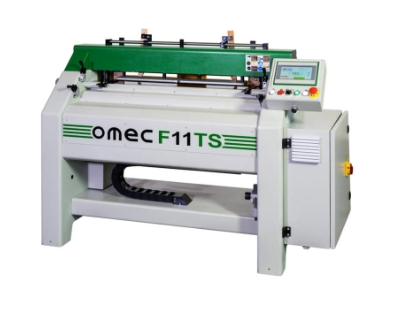

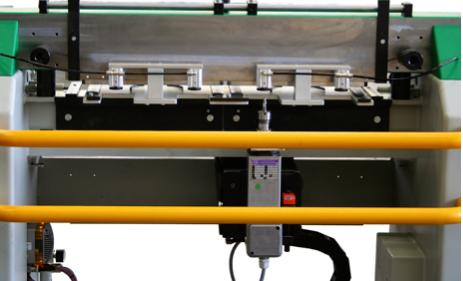

Omec Model F11 TS Automatic Dovetail Machine

• Omec Model F11 TS Automatic Dovetail Machine
• Technical Data:
• Power installed of machine: 6.1 HP
• Working pressure: 0.7 Mpascal
• Number of spindles: 1
• Spindle revolutions: 18,000
• Distance between centers of joints: Fixed or variable
• Workpiece Limits
• Lengths: Min. 1700mm Max. 1500mm
• Width: Min. 60mm Max. 770mm
• Indent Height: Min. 6mm Max. 40mm
• Front Thickness: Min. 8mm Max. 55mm
• Side Thickness: Min. 8mm Max. 40mm
• Standard Equipment
• Fixed and Variable Pitch
• 80 drawers per hour
• Drawer height Min 2.36″(60mm) Max 30.31″ (770mm)
• Bord Thickness Max .31″ (8mm ) Max 2.16″ ( 55 mm )
• Integral Carbide cutter installed on the machine
• Tool Kit for adjustments and maintenance
• User’s and instruction manual
• Machining area of approximately 30”
• F11TS can produce most any design and size dovetail product desired
• Spindle speeds of 18,500 rpm, can accommodate a variety of tooling to produce the dovetail effect desired by operator including box cuts, French dovetails, alternating pitch, etc
• Control of spindle location, machining speed, tooling variance, height of pin, depth of joint, location of joint, and number of joints are all controlled by CNC

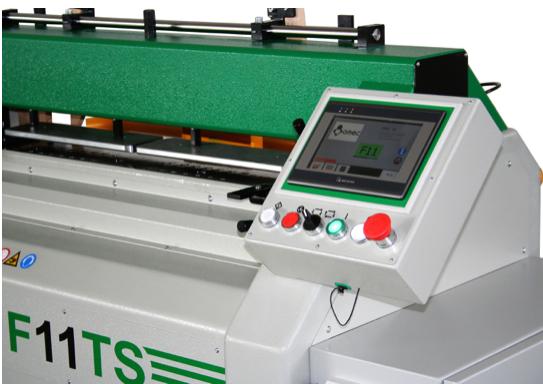

• 7″ inch touch screen /600 programs for easier and faster operator inputs and a better visual representation of the machine operation
• Additional modifications include the positioning servo now equipped with an absolute encoder eliminating X and Y axis limit switches
