Omec Model F12 Automatic CNC Controlled Dovetail Machine
Machine Available
Stock #21340N

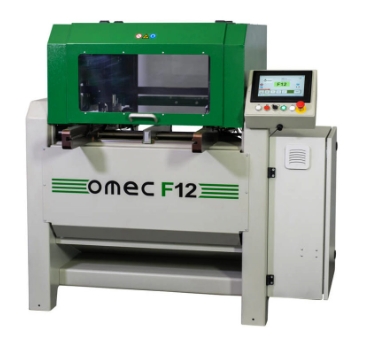

New- Omec Model F12 Automatic CNC Controlled Dovetail Machine
- Technical Data:
- Power installed of machine: 3.33 HP
- Working pressure: 0.7 Mpascal
- Number of spindles: 1
- Spindle revolutions: 21,000
- Distance between bottle holders: Variable
- Piece production: 1000/h
- Workpiece Limits
- Lengths: Min. 90mm Max. 600mm
- Width: Min. 40mm Max. 250mm
- Thickness: Min. 4mm Max. 24mm
- Standard Equipment
- Integral HM Cutter installed on machine (Ø 14)
- Tool kit for adjustments and maintenance
- User’s and instruction manual
- 4-axes automatic milling machine with numeric control has been designed to create bottles racks and internal partitions for packing boxes
- Spindle with a cutter to cut bottle holders with different dimensions and positions
- The machine is controlled with a pushbutton panel and a touch screen control panel
- All the adjustments can be easily performed by following the instructions provided directly by the software on the monitor of the machine
