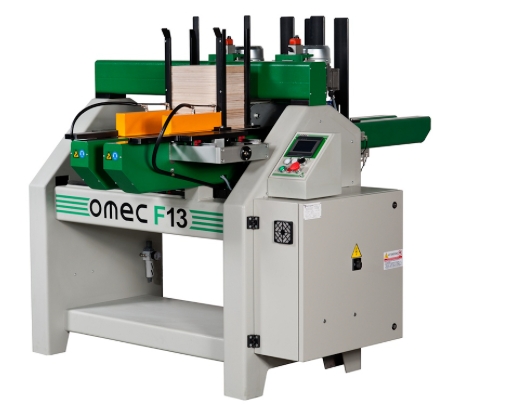

Omec Model F13S Automatic Milling Machine

• Omec Model F13S Automatic Milling Machine
• Technical Data:
• Power installed of machine: 4.55 HP
• Working pressure: 0.7 Mpascal
• Number of blades: 2
• Blade revolutions: 5,600 RPM
• Position of grooves: Variable
• Piece production: 1200 n/h
• Workpiece Limits
• Lengths: Min. 40mm Max. 600mm
• Width: Min. 40 mm Max. 850mm
• Thickness: Min. 5mm Max. 17mm
• Groove Width: Min. 3mm Max. 12mm
• Distance from Edge: Min.0mm Max. 150mm
• Standard Equipment
• Tool kit for adjustments and maintenance
• User’s and instruction manual
• Automatic dado or rabbet milling machine has been designed to produce bottom grooves for box covers or inset slots for bottle racks
• Two blades for cutting slots in various dimensions and positions
• The machine cuts single pieces
• Touchscreen control panel with easy data entry and 40-file stored memory
• Controlled by a PLC programmed for the maximum flexibility and highest machining speedAdjuster shafts and position indicators.
