Omec Model ICM 300 Automatic Gluing for Drawers
Machine Available
Stock #21360N

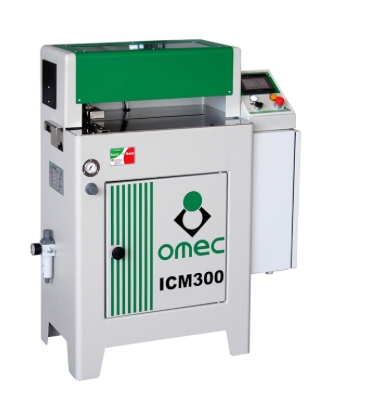

New- Omec Model ICM 300 Automatic Gluing for Drawers
- Technical Data
- On board machine installed power: 30 watts/.25HP
- Working pressure: Mpascal 0.7
- Glue Type: Low Viscosity Assembly Glue
- Glue Tank Capacity: 9 liters/2.3 gallons
- Workpiece Limits
- Draw Length: min. 150mm max. 1500mm
- Draw Width: min. 50mm max. 450mm
- Draw Thickness: min. 5mm max. 40mm
- Standard Equipment

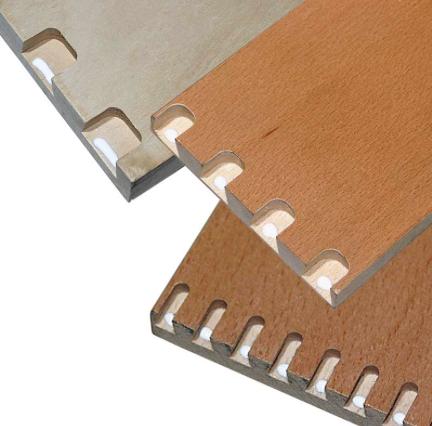

- Automatic gluing machine designed to glue different types of drawers featuring dovetails, parallel joints and lock-pins
- Read Less -Took kit for adjustments and maintenance
- User’s and instruction manual
