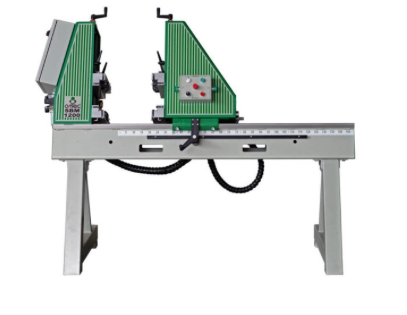

Omec Model SBM 1200 Drawer Box Clamp

• Omec Model SBM 1200 Drawer Box Clamp
• Technical Data
• Power installed on the machine: 1.12 Kw
• Working pressure: 0.4 MPascal
• Boxes production: 180 n/h
• Workpiece Limits
• Draw Length: min. 100mm max. 1050mm
• Draw Width: min. 70mm max. 400mm
• Draw Thickness: min. 2mm max. 15mm
• Standard Equipment

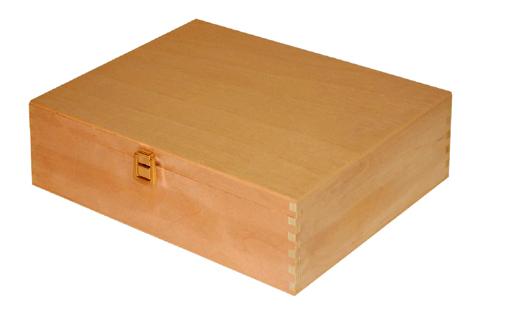

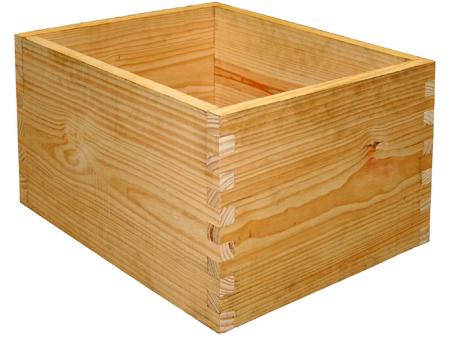

• Hydraulic Manual clamp has been designed and built for assembling small boxes
• The size of the box is adjusted manually by the operator
• The machine has a hydraulic power plant which drives three cylinders to press the four sides of the box previously inserted in the relevant clamps
• Controls are located on a built-in control panel
• The SBM1200 model is controlled by a programmable controller (PLC) which is entrusted with the working cycle control
