Omec Model SCM 1200 Hydraulic Drawer Clamp
Machine Available
Stock #14410N

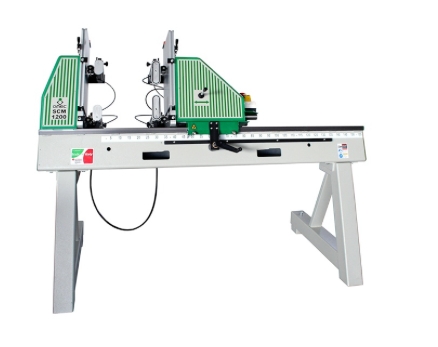

New- Omec Model SCM 1200 Hydraulic Drawer Clamp
- Technical Data
- On board machine installed power: 0.5 HP
- Working pressure: Mpascal 0.7
- Drawers’ production output: Up to 60 boxes/hour
- Workpiece Limits
- Draw Length: min. 250mm max. 1200mm
- Draw Width: min. 240mm max. 600mm
- Draw Thickness: min. 60mm max. 260mm
- Standard Equipment
- Took kit for adjustments and maintenance
- User’s and instruction manual

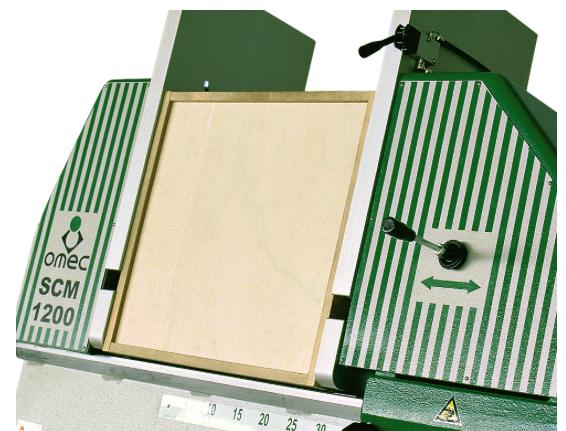

- This drawer box clamp is unique in that the operator assembles the loose box parts in the clamp itself not prior to introducing to the clamp
- Pneumatic cylinders lock in the drawer sides and spring guides the fronts and backs
- A pneumatic vacuum holds the drawer bottom in place when the hydraulic cylinder compresses the box
- Total time from loose parts to completed box is less than one minute.
