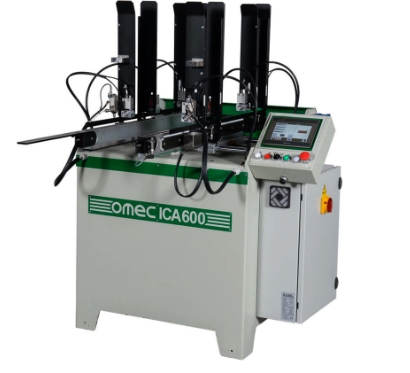

Omec Model ICA 600 Automatic Glue Machine

• Omec Model ICA 600 Automatic Glue Machine
• Technical Data:
• On board machine installed power: 0.5kw
• Working pressure: Mpascal 0.7
• Glue Type: vinyl glue
• Glue Tank Capacity: 32
• Workpiece Limits
• Draw Length: min. 150mm max. 600mm
• Draw Width: min. 60mm max. 4050mm
• Draw Thickness: min. 4mm max. 25mm
• Standard Equipment
• Automatic Gluing for Drawers High Production
• Automatic gluer will greatly increase speed and reduce manpower in the drawer work cell

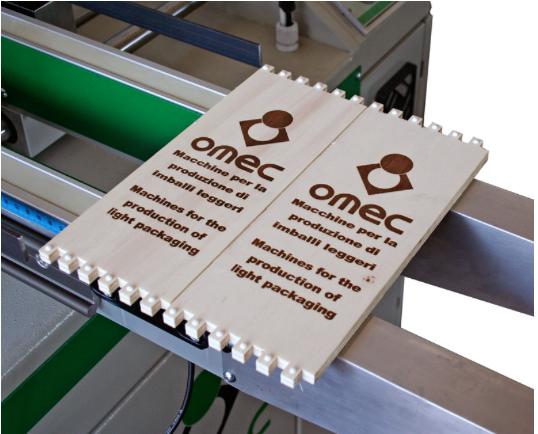

• Load the hopper and it glues both ends of two panels (male or female), then conveys parts to out-feed
• Components and gluer sit idle until the pieces are removed by the operator
• Once the piece is removed, the machine runs the cycle again, keeping parts ready for assembly
• Setup is loading the hopper, entering data into the Touch-Screen, adjusting the outer fences and aiming the glue guns
• Control: ICA600 CNC Control determines glue placement and quantity so you have the right amount every time, every dovetail, every box
• Touch-Screen Interface allows ease of inputting dimensions and setting control parameters
• File memory offers the ability to store a glue patterns including quantity released, distance apart and overall product width
