Camam Model TAC CN CA Angle Cut Off Saw
Machine Available
Stock #03220N

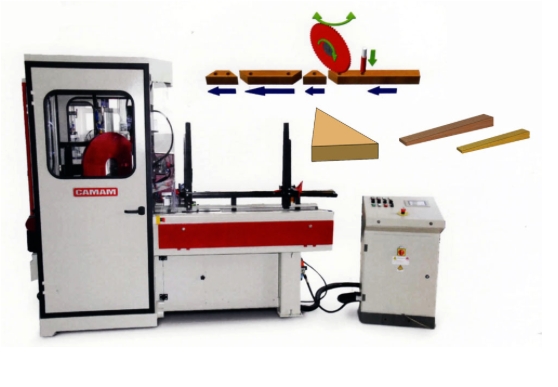

New- Camam Model TAC CN CA Angle Cut Off Saw
- Specifications
- Versatile heavy duty automatic cut off saw for making straight or angled cuts in furniture components
- Equipped with an automatic hopper feed for continuous production, the machine can be mechanically set to make a straight or angled cut as pre-selected by the operator
- The feeding and advancement of the timber is programmable through NC controller When the optional wider clamping width is specified the machine is also suitable Automatic hopper feeder and loader
- Adjustable feed stroke NC controlled

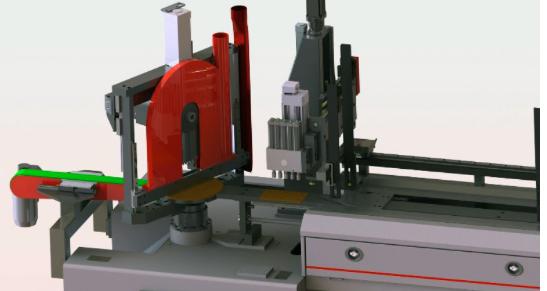

- Piece positioning device with double pneumatic clamps
- 3KW motor with 500mm blade 2800 rpm
- Mechanical blade angling 0 degrees / + / – 60 degrees
- Minimum infeed length 200mm / maximum 1300mm
- Minimum section 20mm wide x 10mm thick / maximum 200mm wide x 100mm thick
- Options
- Increased infeed loader capacity 2000mm
- Extra set of grippers for materal 200mm wide
- Height extension pieces for 200mm grippers
- Horizontal loading and outfeed sorting system price on request
