Camam Model FGS 1T CAB Rotary Shaping and Profiling Machine
Machine Available
Stock #03270N

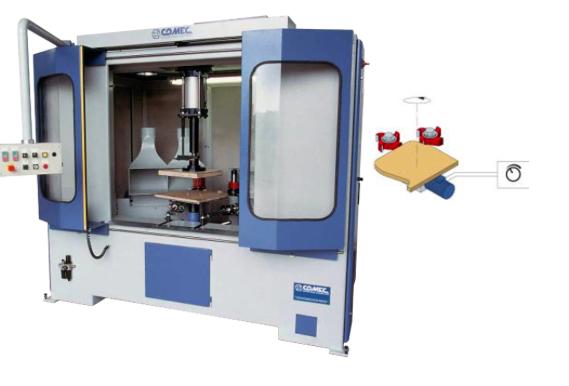

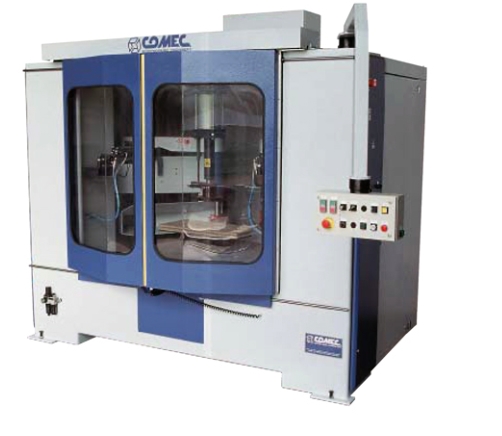

New- Camam Model FGS 1T CAB Rotary Shaping and Profiling Machine
- Specifications
- Compact rotary high production machine for shaping and milling equipped with single or twin machining heads
- Milling / shaping takes place by means of the heads following a jig on the table
- The working area is totally enclosed in a safety cabin with automatic opening / closing of the doors
- On request machines can be configured to suit customers own requirements
- 1 x profiling / milling head 12.5hp motor at 7000rpm
- Max dia to be worked 800mm
- Min dia to be worked 110mm
- Rotation of work table 2, 3.5, 5. 7.5 revs per min
- Motor for rotation 2hp
