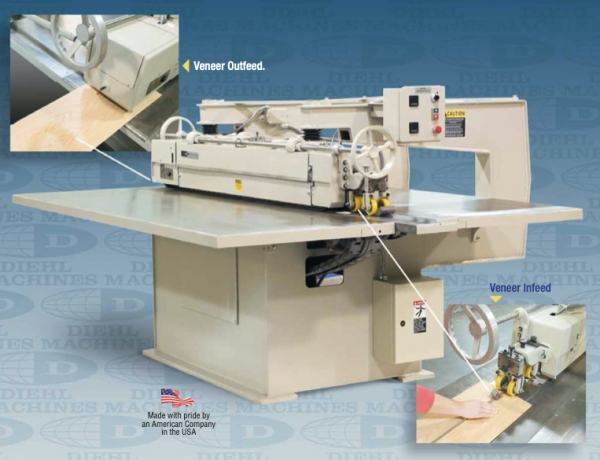

Diehl Model VS81 Veneer Splicer

• Standard Features:
• A.C. frequency inverter drive 20 - 105 FPM
• Solid state heater bar control for accurate & consistent temperature control
• 68” long splicing zone
• Up to 3/16” thick splicing capability
• Durable, heavy duty design
• Specifications:
• Minimum length: 6″
• Height: 61″
• Maximum table width to right: 42″ (Optional 55")
• Height of table from floor: 36 1/4″
• Feed motor (variable speed): 1 1/2 HP
• Feed Speeds: (infinitely variable) 15-105 fpm up to 140 fpm on request
• Magnetic push button control
• Thermal over/under voltage motor protection
• Thermostat control for heater bar
