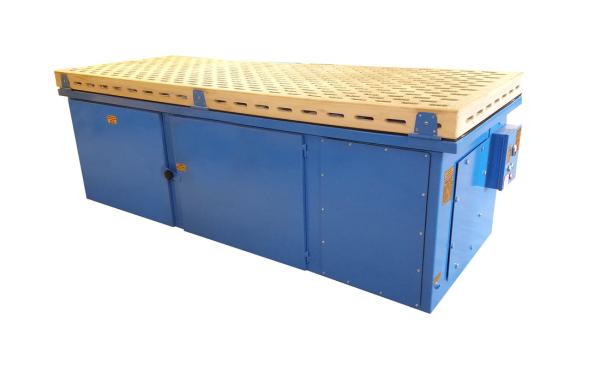

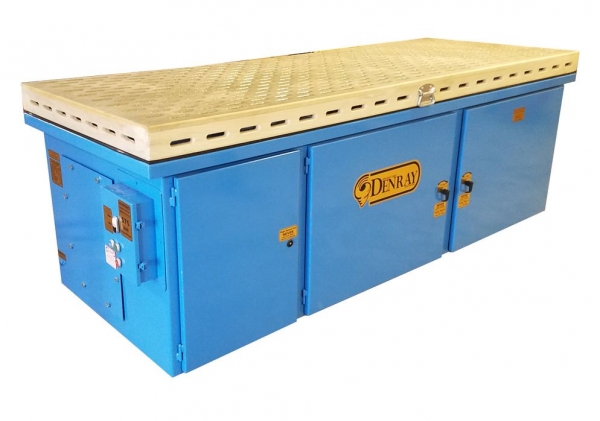

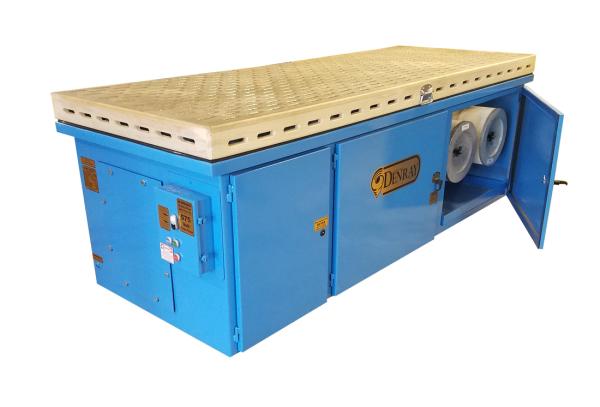

Denray Model 3696B Cartridge Filter Downdraft Table

• Denray Model 3696B Cartridge Filter Downdraft Table
• GENERAL DESCRIPTION
  This model is ideal for medium and large sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denray's push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber coated top. *Please note that the starter box on this model is on the left side of the machine.
• 36" x 96"
• 36" height
• 5 HP motor
• 3400 CFM
• 82 decibels sound level
  PHASE/VOLTAGE OPTIONS
  SINGLE-PHASE
• 220 voltage (23 amps)
  THREE-PHASE
• 230 voltage (13.4 amps)
• 460 voltage (6.7 amps)
• 575 voltage (5.3 amps)
  ADDITIONAL OPTIONS
• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade
