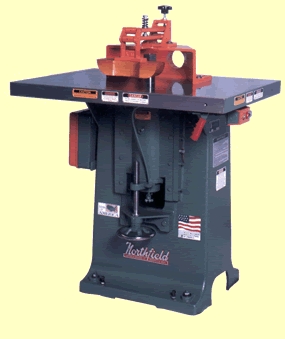

Northfield Production Shaper

• Northfield Production Shaper
• General Information:
• Production Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
• Spindles are available to 1-1/2" diameter and up to 8" in length
• Guard, aluminum dust spout & hand brake are standard equipment
• General Specifications:
• Diameter of Spindle (standard machine): 1"
• Vertical Adjustment of Spindle: 4-1/2"
• Length of Spindle at Collar: 5"
• Size of Table: 36" x 26"
• Height of Table Top: 36"
• Spindle Speed: 8,000 RPM
• Spindle Rotation: Counterclockwise
• Size of Dust Spout: 4" - 4" dust spout requires approx. 400 CFM air flow for dust collection
• Horsepower available: 3, 5, 7-1/2, 10, 15 TEFC
• Size of Throat Hole: 4-1/2"
• Additional Options:
• K-50 fence with hold down springs
• Micrometer adjust for K-50 fence
• 3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
• 6-1/2" spindle length 1, 1-1/8, 1-1/4 solid spindle only
• 8" spindle length 1-3/8, & 1-1/2 solid spindle
• Reversing solid spindle with reversing switch
• Detachable non-reversing spindle screw-on type 3/4, 7/8, 1, 1-1/8, 1-1/4"
• Detachable reversing spindle taper type 3/4, 7/8, 1, 1-1/8"
• Detachable router top 1/2" hole
• Collet spindle (3/4" max collet bore)
• 6000 & 4000 RPM spindle speed
• NEMA 12 electrics with fused disconnect
• 24-volt push-button
• 6" front & rear table extensions
• Switch to disconnect power upon actuation of brake
• Clockwise spindle rotation
• Miter gauge with dovetail slot
• Throat hole and plates available: 8", 6-1/2" and nested
• 42" x 42" table
• Digital read-out spindle position
• Modifications to customer's order
