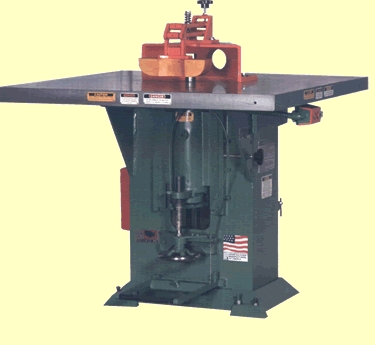

Northfield Heavy Duty Shaper

Machine Available
Stock #931610N
New
   CALL FOR PRICE

  • General Information:
  • Heavy Duty Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
  • The 42" x 42" table provides room for mounting feeders and gives full support for large jigs and fixtures
  • Spindles are available to 1-1/2" diameter and up to 8" in length
  • Under table dust outlet improves dust & chip extraction
  • Guard, aluminum dust spout & hand brake are standard equipment
  • General Specification:
  • Diameter of Spindle (standard machine): 1"
  • Vertical Adjustment of Spindle: 4-1/2"
  • Length of Spindle at Collar: 5"
  • Size of Table: 42" x 42"
  • Height of Table Top: 34-1/2"
  • Spindle Speed: 8,000 RPM
  • Spindle Rotation: Counterclockwise
  • Size of Dust Spout: 4" - 4" dust spout requires approx
  • 400 CFM air flow for dust collection
  • Horsepower: 3, 5, 7-1/2, 10, 15 TEFC
  • Size of Throat Hole: 4-1/2"
  • Additional Options:
  • K-50 fence with hold down springs
  • Micrometer adjust for K-50 fence
  • 3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
  • 6-1/2" spindle length 1, 1-1/8, 1-1/4 solid spindle only
  • 8" spindle length 1-3/8, & 1-1/2 solid spindle
  • Reversing solid spindle with reversing switch
  • Detachable non-reversing spindle screw-on type 3/4, 7/8, 1, 1-1/8, 1-1/4"
  • Detachable reversing spindle taper type 3/4, 7/8, 1, 1-1/8"
  • Detachable router top 1/2" hole
  • 6000 & 4000 RPM spindle speed
  • NEMA 12 electrics with fused disconnect
  • 24-volt push-button
  • Hand brake in lieu of foot brake
  • Switch to disconnect power upon actuation of brake
  • Clockwise spindle rotation
  • Miter gauge with dovetail slot
  • Single phase 3, 5 hp, 220-volt
  • Throat hole and plates available: 8", 6-1/2" and nested
  • Modifications to customer's order
