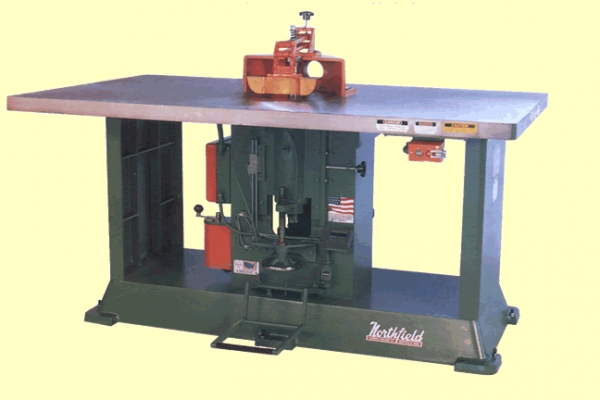

Northfield Heavy Duty Large Top Shaper
Machine Available
Stock #931620N
New- General Information:
- Heavy Duty Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
- The 44" x 72" table provides room for mounting feeders and gives full support for large jigs and fixtures
- Spindles are available to 1-1/2" diameter and up to 8" in length
- Under table dust outlet improves dust & chip extraction
- Guard, aluminum dust spout & foot brake are standard equipment
- General Specifications:
- Diameter of Spindle (standard machine): 1"
- Vertical Adjustment of Spindle: 4-1/2"
- Length of Spindle at Collar: 5"
- Size of Table: 44" x 72"
- Height of Table Top: 37"
- Spindle Speed: 8,000 RPM
- Spindle Rotation: Counterclockwise
- Size of Dust Spout: 4" - 4" dust spout requires approx
- 400 CFM air flow for dust collection
- Horsepower: 3, 5, 7-1/2, 10, 15 TEFC
- Size of Throat Hole: 4-1/2"
- Additional Options:
- K-50 fence with hold down springs
- Micrometer adjust for K-50 fence
- 3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
- 6-1/2" spindle length: 1, 1-1/8, 1-1/4 solid spindle only
- 8" spindle length: 1-3/8, & 1-1/2 solid spindle
- Reversing solid spindle with reversing switch
- Detachable non-reversing spindle screw-on type: 3/4, 7/8, 1, 1-1/8, 1-1/4"
- Detachable reversing spindle taper type: 3/4, 7/8, 1, 1-1/8"
- Detachable router top 1/2" hole
- Collet spindle (3/4" max collet bore)
- 6000 & 4000 RPM spindle speed
- NEMA 12 electrics with fused disconnect
- 24-volt push-button Switch to disconnect power upon actuation of brake
- Clockwise spindle rotation
- Throat hole and plates available: 8", 6-1/2" and nested
- Digital read-out spindle position
- Spindle crank on front of machine
- Modifications to customer's order
