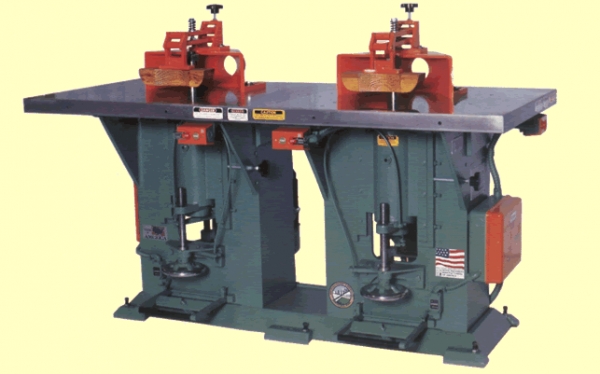

Northfield Large Top Double Spindle Shaper

• General Information:
• Double Spindle Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
• The 42" x 84" table provides room for mounting feeders and gives full support for large jigs and fixtures
• Spindles are available to 1-1/2" diameter and up to 8" in length
• Under table dust outlet improves dust & chip extraction
• Guards, aluminum dust spouts & hand brakes are standard equipment
• General Specification:
• Diameter of Spindle (standard machine): 1"
• Vertical Adjustment of Spindle: 4-1/2"
• Length of Spindle at Collar: 5"
• Size of Table: 42" x 84"
• Distance Between Spindles: 42"
• Height of Table Top: 34-1/2"
• Spindle Speed: 8,000 RPM
• Spindle Rotation (Front of Machine) RH Spindle: Counterclockwise LH Spindle: Clockwise
• Size of Dust Spout: 4" - 4" dust spout requires approx. 400 CFM air flow for dust collection
• Size of Throat Hole: 4-1/2"
• Additional Options:
• K-50 fence with hold down springs
• Micrometer adjust for K-50 fence
• 3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
• 6-1/2" spindle length 1, 1-1/8, 1-1/4 solid spindle only
• 8" spindle length 1-3/8, & 1-1/2 solid spindle
• Opposite spindle rotation RH, CW, LH, CCW
• Reversing solid spindle with reversing switch
• Detachable non-reversing spindle screw-on type: 3/4, 7/8, 1, 1-1/8, 1-1/4"
• Detachable reversing spindle taper type: 3/4, 7/8, 1, 1-1/8"
• Detachable router top: 1/2" hole
• Collet spindle: (3/4" max. collet bore)
• 6000 & 4000 RPM spindle speed
• NEMA 12 electrics with fused disconnect
• 24-volt push-button
• Hand brake in lieu of foot brake
• Switch to disconnect power upon actuation of brake
• Miter gauge with dovetail slot
• Throat hole and plates available: 8", 6-1/2" and nested
• Modifications to customer's order
