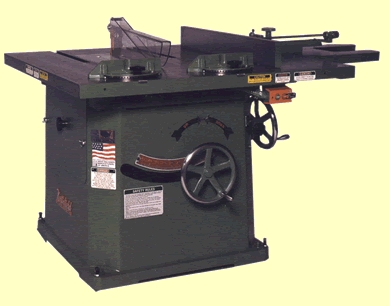

Northfield #4 Standard Saw

• Northfield #4 Standard Saw
• General Information:
• Northfield Tilting Arbor Variety Saws are available in four different models, each of which is designed for a variety of uses
• Each model can accommodate saw blades from 14" to 18"
• The saw arbor can be tilted from 0 degrees to 45 degrees through a conveniently located hand wheel
• A vertical saw adjustment of 4" is standard
• Each Machine is Electronically Balanced
• All tables, whether stationary or rolling, are carefully seasoned, heavily ribbed and precision planed and polished to maintain accuracy
• A graduated scale is marked on the top for ripping widths.
• Dovetailed slots are provided for the sliding gauges
• An adjustable rack and pinion type rip fence is furnished
• Saw Capacity:
• 14" Saw Projects: 3"
• 14" Saw Projects of 45 degree Tilt#: 2-1/4"
• 16" Saw Projects: 4"
• 16" Saw Projects of 45 degree Tilt#:3"
• 18" Saw Projects: 5"
• 18" Saw Projects of 45 degree Tilt#: 3-5/8"
• Saw Arbor Tilts: 0 degrees to 45 degrees
• Arbor Speed (RPM): 3600
• Standard Arbor Diameter: 1-1/8"
• Stationary Table Size: 36" x 44"
• Rip Capacity with Standard Rack & Pinion Type Fence: 32"
• Crosscut Capacity: 32"
• Additional Options:
• Optional Arbor Diameter1", 1-1/4"
• 12", 24" & 36" Cast Iron Table Extensions
• Micrometer Adjust on R & P Fence
• Tilting R & P Fence
• 4" Screw-on Dado Extensions
• Detachable Arbor Motor
• Detachable Arbor Ends
• Dado Throat Plate
• Stock Stops for Miter Gauges
• Thin Dado Collar 13/16" Dado Capacity on Std. Arbor.
