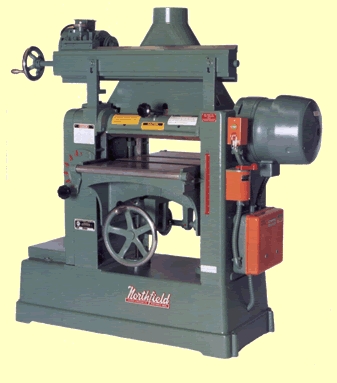

Northfield No.2 18" Planer Surfacer

• Northfield Model No.2 18" Planer Surfacer
• General Specifications:
• Nominal Size: 18" x 8"
• Cylinder: 3-1/2" cutting circle, 4 knife, high carbon steel, micrometer-type knife raising screws
• Knife Size: 5/32" x 1-1/8" x 18-1/8" high speed steel
• Motors Cutterhead---5, 7-1/2, HP
• RPM Direct Motor Drive---3600 VEE-belt---4500 (or customer's specifications)
• Lower Feed Rolls: 2-13/16" sealed-for-life bearings
• Indeed: 2-1/2" diameter, corrugated solid steel, power driven, sealed-for-life ball bearings
• Outfeed: 2-1/2" solid steel, power driven, sealed-for-life ball bearings
• Maximum Stock Width: 18"
• Shortest Butted Piece: 4"
• Shortest Single Piece: 7-1/2"
• Maximum Stock Thickness: 8"
• Minimum Stock Thickness: 1/8"
• Maximum Depth of Cut: 1/4"
• Feed Speed: 20 to 50 lineal feet per minute (higher or lower available in same ratio)
• Controls: Double magnetic switch, single pushbutton
• Additional Options:
• Shavings hood for connection to blower system
• Knife grinder and jointing attachment
• Knurled infeed roll
• Rubber sectional infeed roll
• Modifications to customer's orders
