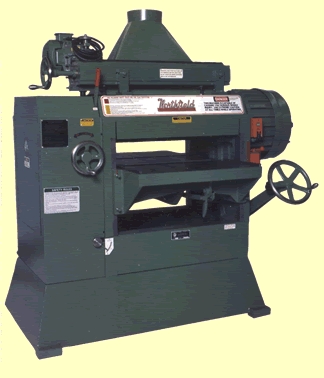

Northfield No. 7 Helical Head 24" Planer-Surfacer

• Northfield No. 7 Helical Head 24" Planer-Surfacer
• General Specifications:
• Capacity: 24" x 8-5/8" Helical Knife
• Cylinder: 5" cutting circle, BYRD "SHELIX" Insert Cutterhead
• Direct Motor Drive 15HP; 3600 RPM
• Brake: Conveniently located hand brake
• Feed: 1-1/2 HP totally enclosed, fan cooled
• Lower Feed Rolls: 4" solid steel, power driven, sealed-for-life bearings
• INFEED: 4" diameter, 2" milled ductile iron sections, 5/16" section yield, 3/4" roll yield, sealed-for-life ball bearings
• OUTFEED: 4" solid steel, power driven, sealed-for-life ball bearings
• Table Feed Roller Adjustment: Single hand lever .001" to .075"
• Feed Speed: 20 to 100 lineal feet per minute (higher or lower available in same ratio)
• Chipbreaker: Ductile iron, 2" sections, concentric with head
• Pressure Bar: Easily adjustable with micrometer type screws
• Shortest Butted Piece: 4"
• Shortest Single Piece: 12"
• Maximum Stock Thickness: 8-5/8"
• Minimum Stock Thickness: 1/16"
• Maximum Depth of Cut: 1/2"
• Controls: Double magnetic switch, single pushbutton, reversing switch on feed mechanism
• Additional Options Included:
• Shavings hood for connection to blower system - 8" Diameter
• NEMA 12 electrics with fused disconnect
• Powerlift table With Handwheel for Fine Adjustment with Limit Switch
• Hard chrome plated pressure bar
• Digital readout
• BYRD "SHELIX" Insert Cutterhead
