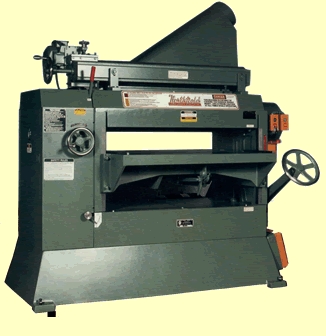

Northfield No. 737 37" Planer Surfacer
Machine Available
Stock #51920N
New- Northfield No. 737 37" Planer Surfacer
- General Specification:
- Nominal Size: 37" x 8"---36" x 8" Helical Head
- Actual Capacity: 37" x 8-3/4"---36" x 8-3/4" Helical Head
- Cylinder: 5" cutting circle, 4 knife, high carbon steel, micrometer-type knife raising screws
- Knife Size: 5/32" x 1-1/4" x 37" high speed steel
- Drive: VEE-belt 3 VX belts
- Brake: Conveniently located hand brake
- Motors: Cutterhead---10, 15, 20, 25 or 30 HP
- Feed---2 HP totally enclosed fan cooled
- Voltage: 208-220/440, 550 volt 60 cycle, 3 phrase std
- RPM: VEE-belt---3600 (or customer's specifications)
- Lower Feed Rolls: 4" solid steel, power driven, sealed-for-life bearings
- Upper Feed Rolls:
- INFEED: 4" diameter, 2" milled ductile iron sections, 5/16" section yield, 3/4" roll yield, sealed-for-life ball bearings
- OUTFEED: 4" solid steel, power driven, sealed-for-life ball bearings
- Maximum Stock Width: 37"---36" Helical Head
- Shortest Butted Piece: 4"
- Shortest Single Piece: 12"
- Maximum Stock Thickness: 8-3/4"
- Maximum Depth of Cut: 3/8"
- Adjustment: Single hand lever .001" to .075"
- Feed Speed: 20 to 100 lineal feet per minute (higher or lower available in same ratio)
- Chipbreaker: Ductile iron, 2" sections, concentric with head Pressure Bar
- Controls: Double magnetic switch, single pushbutton, reversing switch on feed mechanism
- Additional Options:
- Shavings hood for connection to blower system
- Knife grinder and jointing attachment
- Idler rollers for edge of table
- Dial type knife and roll setting gauge
- Limit switch for hand brake
- NEMA 12 electrics
- Powerlift table
- Hard chrome plated pressure bar
- Digital readout
- 3 HP feed motor
- Smooth sectional out feed roll
- Higher or lower feed speeds
- Modifications to customer's orders
