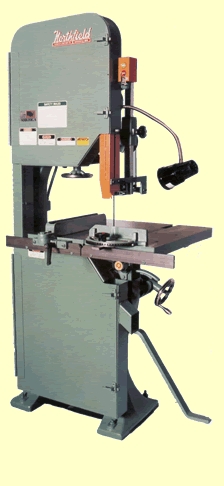

Northfield Heavy Duty 20" Band Saw

• Northfield Heavy Duty 20" Band Saw
• General Specifications:
• Wheel Face : 1-3/8"
• Table Size: 25 x 25"
• Front Edge of Table to Teeth of 3/8" Blade: 9-1/2"
• Capacity Under Guide: 14"
• Table Tilts to Right : 45 degrees
• Table Tilts to Left : 10 degrees
• Horizontal Capacity: 19-1/2"
• Table Height: 39-1/2"
• Wheels: Aluminum Disc
• Brake: Lower Wheel Foot Operated
• Guides: Carter CP Size 0
• Blade: one 3/8" furnished
• Circumference of 20" Wheel is 5.236 ft
• Direct Motor Drive: 2 HP - 900 RPM
• Available: HP and RPM
• (2 HP - 1200 RPM)
• (3 HP 900 RPM)
• (3 HP 1200 RPM)
• (5 HP 1200 RPM)
• Belt Drive : 2 and 3 HP
• HP and RPM: Any Single RPM from 300 to 1200
• Additional Options:
• Left hand machines
• Two wheel foot operated mechanical brakes
• Upper and lower automatic electric brakes
• 18, 24 & 36 inch under guide
• Constant speed belt drive assemblies
• 3 to 1 variable speed drive assemblies
• Nema 12 electrics
• Work light
• 24 or 110 volts at pushbutton
• Miter gauge with square slot
• Miter gauge with dovetail slot
• Single face rip fence, double face rip fence
• Switch for stopping power upon application of foot brake
• Blade welders
• Air nozzles
• Hand resaw attachments
• Paddock guides
• Wright guides
• Rolling tables
• Circle cutting attachments
• Single phase belt drive motors
