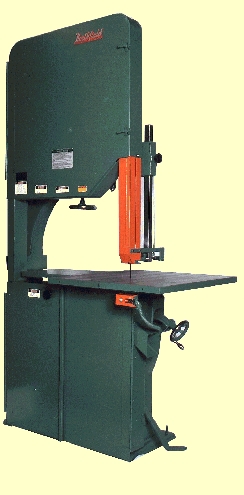

Northfield Heavy Duty 36" Band Saw

• Northfield Heavy Duty 36" Band Saw
• General Specifications:
• Wheel Face : 2"
• Table Size: 30 x 36"
• Front Edge of Table to Teeth of 3/8" Blade: 12"
• Capacity Under Guide: 22"
• Table Tilts to Right : 45 degrees
• Table Tilts to Left : 5 degrees
• Horizontal Capacity: 35 1/2"
• Table Height: 42"
• Brake: Lower Wheel Foot Operated
• Wheel Circumference : 36" Dia. = 9.424 ft
• Dust Outlet: 4.5W x 5.5H use 5" pipe
• Additional Options:
• Multiple HP and RPM available
• Work light
• Crosscut (miter) gauge and slot
• Rip fence, single face (for right side of blade)
• Large cross cut gauge with dovetail slot
• Rip fence, double face for use on both sides of blade
• Blade welders
• Air nozzle assembly, connects to customer's air line
• Hand and power resaw attachment
• Paddock Guides, Wright Guides, Guideall 400
• Large Rolling table, 48" cut-off x 50" wide, solid cast iron, non-tilting table with 12" x 50" auxiliary table
• Power feed attachments for rolling tables
• Left-hand machines
• 48", 36", 30" and 24" (standard) under guides
• Two wheel foot operated synchronized brakes (standard model)
• Upper wheel automatic synchronized safety brake (standard motorized models) includes automatic tension control
• Lower wheel automatic synchronized safety brake
