Ultimizers Smart-Belt

• Ultimizers Smart-Belt
• General Information

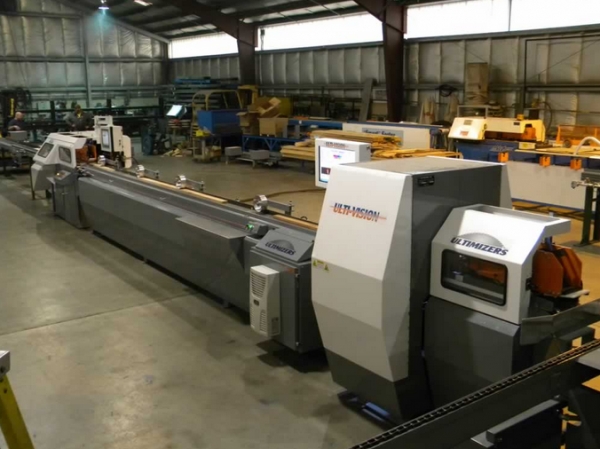

• Ultimizers “Smart-Belt” inline feeder/transfer is purpose built to maintain minimal gaps between boards going through scanners or measuring stations to the saw
• This approach almost completely eliminates the possibility of out of sequence solutions and broken boards due to side transferring

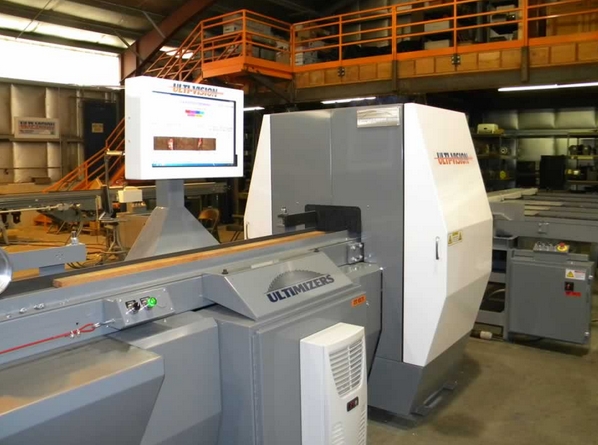

• The saw control touch screen monitors and controls the photocells and speeds to keep an efficient pace between the needs of the scanners and the needs of the saw
• Speeds and spacing is user configured

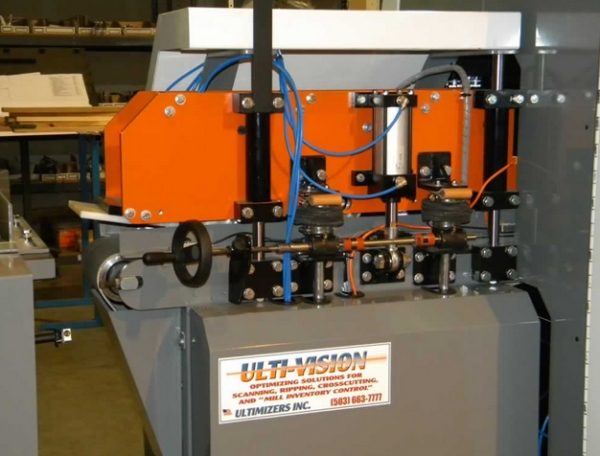

• An adjustable heavy duty hold down beam pulls the board from the feeder and locks it onto the “Smart-Belt” conveyor

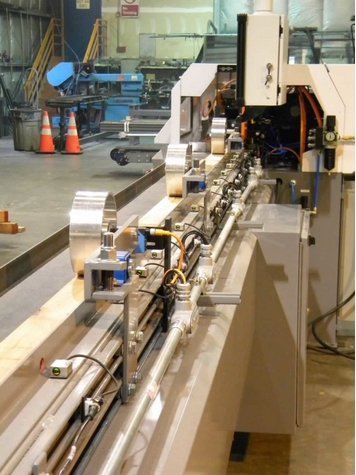

• The Conveyor is a single belt through a serpentine gap to allow room for scanner to see from the bottom up
• Using photo cells at a very close intervals, the gap between the board in the saw and the next board from the scanner is monitored and minimized automatically
• The purpose of this design is to allow for fully automatic scanning, or crayon mark reading measuring stations to be in line with a saw which has been proven to maintain higher production rates
• The "Smart Belt" has a built-in gap for the scanner to look from the top, bottom and sides.
