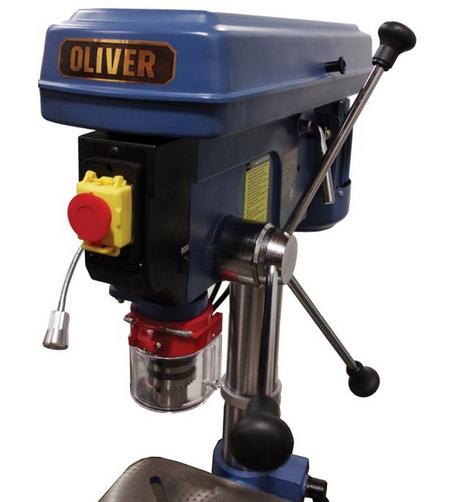

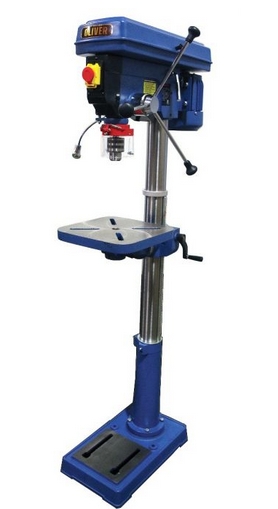

Oliver Model 10062.001 17" Swing Floor Model Drill Press
Machine Available
Stock #10510N
New- Oliver Model 10062.001 17" Swing Floor Model Drill Press
- Specifications:
- Swing: 17”
- Drilling Capacity: 3/4”
- Chuck Capacity: 5/8”
- Chuck Taper: JT-3
- Table Size: 12 x 12"
- Table Tilt : +/- 45°
- Spindle Taper: MT-2
- Spindle Travel: 3-1/8”
- Spindle Speeds: 16
- Speed Range RPM: 240 to 3,400
- Spindle to Table: 28"
- Spindle to Base: 48 1/2"
- Column Diameter: 3 1/8"
- General Features:
- Line interrupt switch requires manual start in the event of a power loss
- Spindle is supported by high quality sealed ball bearings
- LED lamp provides a well lit work area
- Table rotates 360° and tilts 45°
- Crank operation moves table up and down with locking clamp
- Laser pointer is built-in for precise repeat drilling
- Drill chuck guard included
- 5/8”chuck and key holder included
- Cast iron pulleys reduce vibration
- Positive depth stop allows repeated operations with ease
- Powerful 3/4 HP Motor
