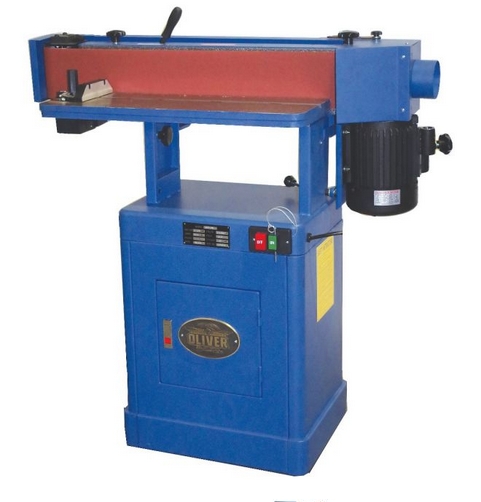

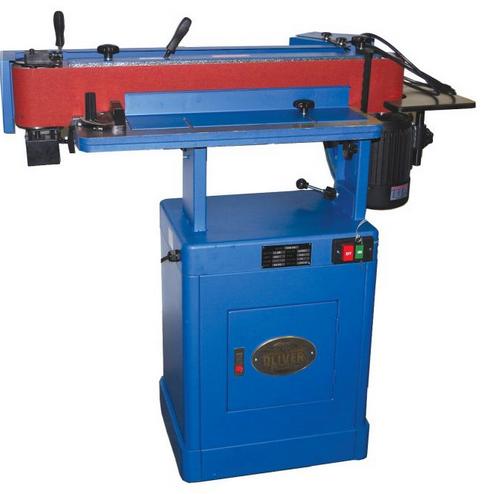

Oliver Model 6303 6" x 89" Oscillating Edge Sander

• Oliver Model 6303 6" x 89" Oscillating Edge Sander
• Specifications:
• Table Material: Cast Iron
• Main Table Size: 10” x 29-1/2”
• End Table Size: 9-3/4” x 11-3/4”
• Main Table Working Height: 38” 41-1/2”
• End Table Working Height: 37-1/2” - 42”
• Belt Size: 6” x 89”
• Belt Speed: 3,900 FPM
• Oscillation Stroke: 1/4”
• Fence Size: 3” x 23-1/2”
• Dust Port Diameter: 4"
• Minimum CFM Required: 650 CFM
• General Features:

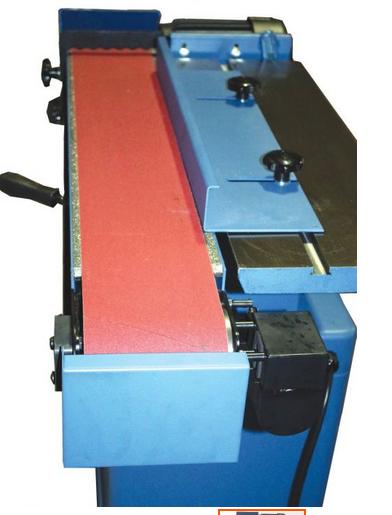

• 6” x 89” belt features oscillation action for a superior finish
• Belt operates at any angle between horizontal and vertical
• Easy belt changing and tracking adjustments
• Steel platen is graphite covered for reduced friction

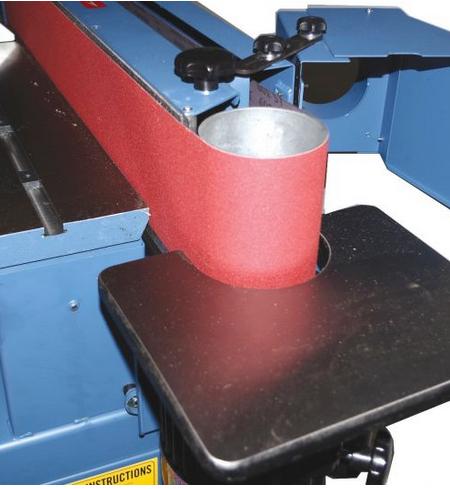

• Contoured sanding possible with end table in place
• Tables are heavy cast iron and precision ground
• Tables adjust up and down for complete use of belt
• Main table slotted and includes a miter gauge
• Table fence included to assist in operation
• Heavy duty enclosed cabinet features a storage area
• Lockable on/off switch
• Powerful TEFC 1.5HP single phase motor
