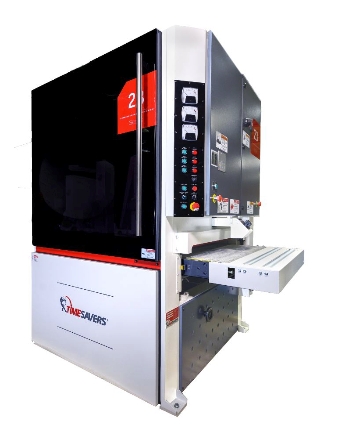

Timesavers Model 2321-23-01 Two Head 36" Widebelt

Machine Available
Stock #70950N
New
   CALL FOR PRICE

  • Timesavers Model 2321-23-01 Two Head 36" Widebelt Sander
  • Specifications:
  • Abrasive belt size: 37x75"
  • Main motor: 25, 20HP
  • Maximum width stock: 36"
  • Minimum part length: 15"
  • Maximum thickness opening: 5"
  • Feed speed: 15-45 FPM
  • Passline height: 33-38"
  • Dust extraction: 2000 CFM (5” static pressure)
  • 4 CFM @ 90 psi
  • Standard Features:
  • 8” Diameter Contact Drum: (first head position)
  • Dual Action Sanding Head: (second head position)
  • 25 & 20 Horsepower Main Drive Motors
  • Dual Infeed and Dual Outfeed Holddown Rolls
  • Air Operated Disc Brakes
  • Centralized Control Panel
  • Four Jack Bed Construction
  • Hour Meter
  • Infeed Stop Bar
  • Dial Indicators on Adjustable Drum/Platen Heads
  • Main Motor Percentage Load Meters
  • Electronic Go-To Device
  • Motorized Thickness Adjustment
  • Through-Beam Abrasive Belt Tracking
  • Quick Release Outboard Support
  • Variable Speed Conveyor Drive
  • Part Set-up Device
  • U.L. Listed Components
  • Spare Platen Assembly
