Timesavers Model 3331-05-334 TP Three Head 52" Twin Pad Orbital/Brush Sander
Machine Available
Stock #71540N
New- Timesavers Model 3331-05-334 TP Three Head 52" Twin Pad Orbital/Brush Sander
- Specifications:
- Abrasive size (orbital heads): 10.5 x 52"
- Abrasive size (brush head): 12" diameter
- Main motors: 7.5, 7.5, 3 HP
- Maximum width stock: 51"
- Minimum part length with vacuum bed: 6"
- Maximum thickness opening: 5"
- Infeed loading area: 24"
- Feed speed: 15-45 FPM
- Approximate full load amps at 460 volt: 69
- Passline height: 32-38 Variable
- Dust extraction: 5,250 CFM (5" static pressure)
- Compressed air usage: 6 CFM @ 90psi
- Standard Features:
- Twin Pad Dual Motion Orbital Head:(1st & 2nd positions)
- Air Knife Blow-off
- 12” Diameter Brush Head: (third head position)
- Infeed Stop Bar
- Dual Infeed and Dual Outfeed Holddown Rolls

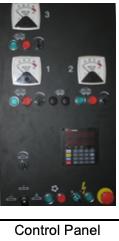

- Centralized Control Panel
- Main Motor Percentage Load Meter
- Hour Meter
- Four Jack Bed Construction
- Motorized Thickness Adjustment
- Electronic Go-To Device
- Variable Speed Conveyor Drive
- Part Set-up Device
- Spare Platen Assemblies
- U.L. Listed Components
- A/C Frequency
- Vacuum Conveyor Bed
- Factory Start-up and Training
