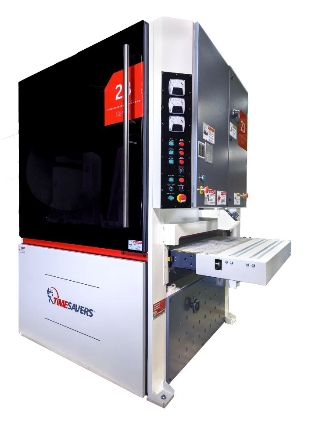

Timesavers Model 2331-24-201 Three Head 43" Planer Sander
Machine Available
Stock #71580N
New- Timesavers Model 2331-24-201 Three Head 43" Planer Sander
- Specifications:
- Abrasive belt size: 43"x75"
- Main motors: 30, 20, 20HP
- Maximum width stock: 42"
- Minimum part length: 15"
- Maximum thickness opening: 5"
- Minimum finished thickness with planer head: 1/2"
- Infeed loading area: 14"
- Feed speed: 15-45 FPM
- Passline height: 33-38"
- Dust extraction: 5200 CFM
- Compressed air usage: 4 CFM @ 90psi
- Standard Features:

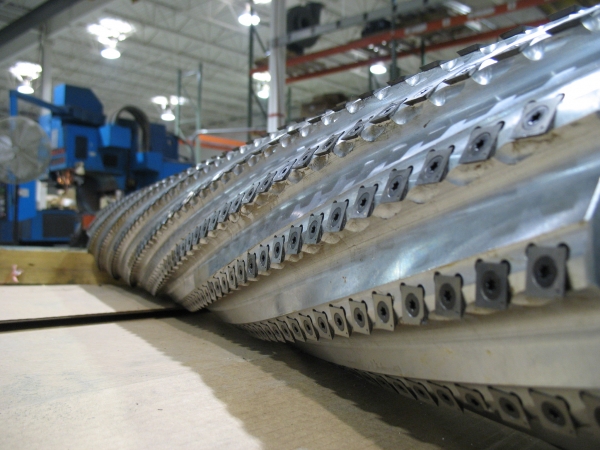

- 6” Diameter Knife Head: (first head position)
- 8” Diameter Contact Drum: (second head position)
- Dual Action Sanding Head: (third head position)
- Anti-Kickback Assembly
- Sectional Infeed Shoe
- Dual Infeed and Dual Outfeed Holddown Rolls
- Air Operated Disc Brakes
- Motorized Thickness Adjustment
- Centralized Control Panel
- Dial Indicators on Adjustable Drum/Platen Heads
- Hour Meter
- Main Motor Percentage Load Meters
- Four Jack Bed Construction
- Through-Beam Abrasive Belt Tracking
- Quick Release Outboard Support
- Infeed Stop Bar
- Variable Speed Conveyor Drive
- Electronic Go-To Device
- U.L. Listed Components
- Spare Platen Assembly
- Knife Head Maintenance Kit
- Factory Start-Up & Training
