Timesavers Model 2311-24-06 Pro-V Single Head 43" Segmented Widebelt/Polisher

Machine Available
Stock #69330N
New
   CALL FOR PRICE

  • Timesavers Model 2311-24-06 Pro-V Single Head 43" Segmented Widebelt/Polisher
  • Specifications:
  • Abrasive belt size: 43 x 75"
  • Main motor: 25HP
  • Maximum width stock: 42"
  • Minimum part size: 6 x 6 with vacuum bed
  • Maximum thickness opening: 5"
  • Infeed loading area: 14"
  • Feed speed: 15-45 FPM
  • Approximate full load amps at 460 volt: 63
  • Passline height: 33-38"
  • Dust extraction: 2500 CFM (5" static pressure)
  • Compressed air usage: 8 CFM @ 90 psi
  • Addt’l compressed air usage for belt blow-off: 41 CFM @ 90 psi
  • Standard Features:

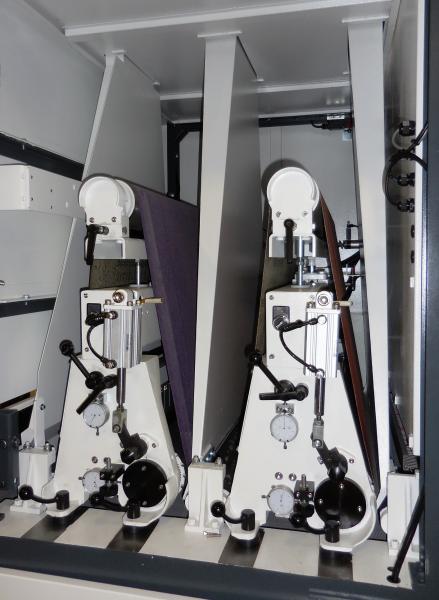

  • Dual Action Segmented Sanding Head
  • 25 Horsepower Main Drive Motor
  • Infeed Stop Bar
  • A.C. Variable Frequency Main Drive Motor
  • Dual Infeed and Dual Outfeed Holddown Rolls
  • Air Operated Disc Brakes
  • Centralized Control Panel
  • Dial Indicators on Adjustable Drum/Platen Heads
  • PLC Controller with HMI Interface
  • Quick Release Outboard Support
  • Main Motor Percentage Load Meter
  • Hour Meter
  • Motorized Thickness Adjustment
  • Variable Speed Conveyor Drive
  • Part Set-up Device
  • Through-Beam Abrasive Belt Tracking
  • Abrasive Belt Blow-Off
  • U.L. Listed Components
  • Panel Cleaning Brush
  • Vacuum Conveyor Bed
