Timesavers Model 2311-45-6 Single Head 52" Segmented Widebelt/Polisher
Machine Available
Stock #69340N

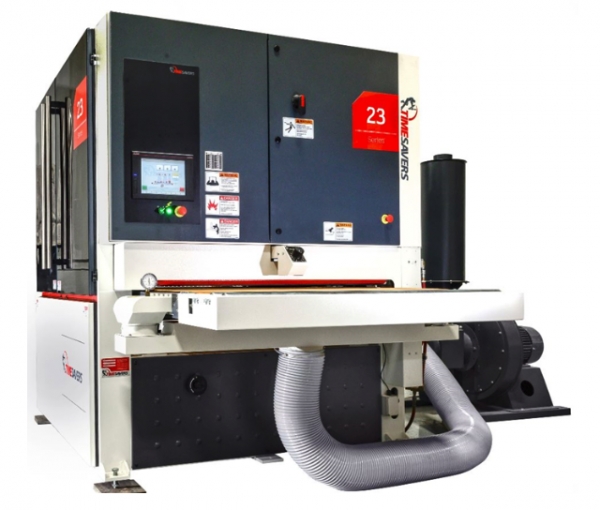

New- Timesavers Model 2311-45-6 Single Head 52" Segmented Widebelt/Polisher
- Specifications:
- Abrasive belt size: 52 x 103"
- Main motor: 30HP
- Maximum width stock: 51"
- Minimum part size: 17"
- Maximum thickness opening: 5"
- Infeed loading area: 14"
- Feed speed: 15-45 FPM
- Approximate full load amps at 460 volt: 40
- Passline height: 33-38"
- Dust extraction: 1750 CFM (5" static pressure)
- Compressed air usage: 4 CFM @ 90 psi
- Addt’l compressed air usage for belt blow-off: 26 CFM @ 90 psi
- Standard Features:

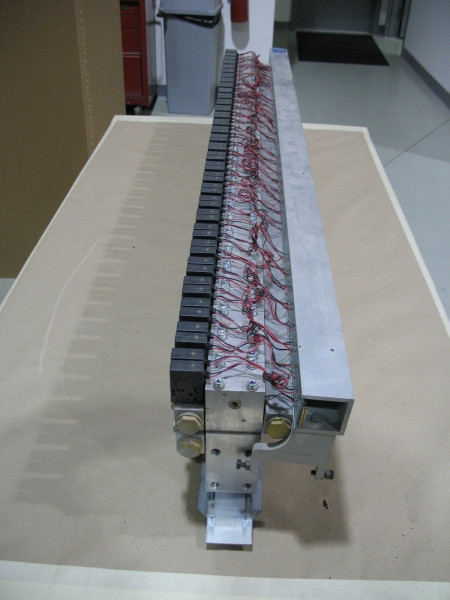

- Dual Action Segmented Sanding Head
- Infeed Stop Bar
- Dual Infeed and Dual Outfeed Holddown Rolls
- Air Operated Disc Brakes
- Centralized Control Panel
- Dial Indicators on Adjustable Drum/Platen Heads
- PLC Controller with HMI Interface
- Quick Release Outboard Support
- Main Motor Percentage Load Meter
- Hour Meter
- Motorized Thickness Adjustment
- Variable Speed Conveyor Drive
- Part Set-up Device
- Through-Beam Abrasive Belt Tracking
- U.L. Listed Components
