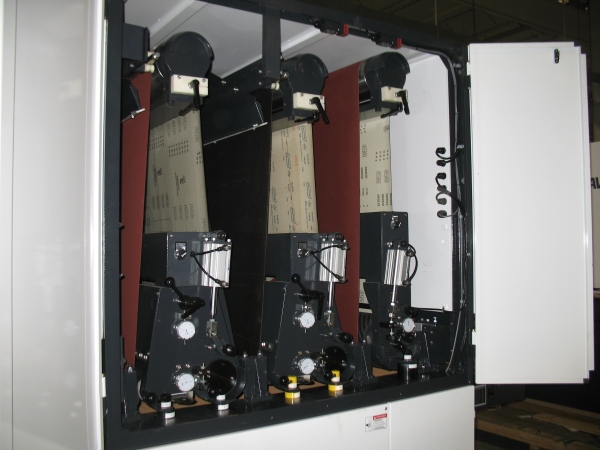

Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher
Machine Available
Stock #71730N
New- Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher
- Specifications:
- Abrasive belt size: 52 x 103"
- Main motor first head: 30HP
- Main motor second and third heads: 25HP
- Maximum width stock: 51"
- Minimum part size: 6 x 6" with Vacuum
- Maximum thickness opening: 5"
- Infeed loading area: 14"
- Feed speed: 15-45 FPM
- Approximate full load amps at 460 volt: 150
- Passline height: 33-38"
- Dust extraction: 8950 CFM (5" Static Pressure)
- Compressed air usage: 8CFM @ 90psi
- Addt’l compressed air usage for belt blow-off: 41 CFM @ 90psi
- Standard Features:
- 8” Diameter Contact Drum: (1st & 2nd head positions)
- Dual Action Segmented Sanding Heads: (3rd position)
- A.C. Variable Frequency Main Drive Motor: (3rd head)
- Abrasive Belt Blow-Off On Third Head
- Dual Infeed and Dual Outfeed Holddown Rolls
- PLC Controller with HMI Interface
- Panel Cleaning Brush
- Air Operated Disc Brakes
- Part Set-up Device
- Infeed Stop Bar
- Hour Meter
- Centralized Control Panel
- Main Motor Percentage Load Meter
- Through-Beam Abrasive Belt Tracking
- Dial Indicators on Adjustable Drum/Platen Heads
- Motorized Thickness Adjustment
- Quick Release Outboard Support
- Vacuum Conveyor Bed
- U.L. Listed Components
- Variable Speed Conveyor Drive
