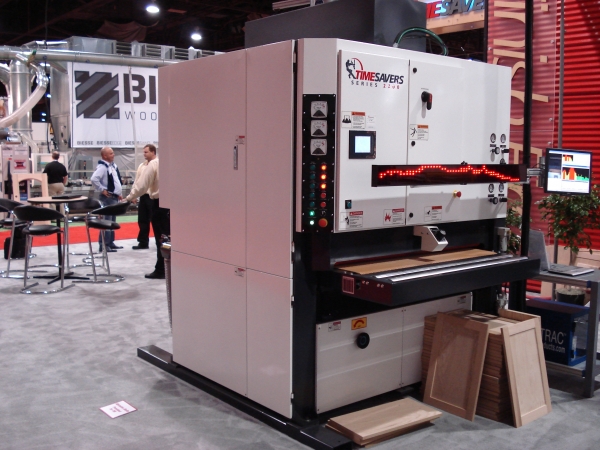

Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher

Machine Available
Stock #71740N
New
   CALL FOR PRICE

  • Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher
  • Specifications:
  • Abrasive belt size: 52 x 103"
  • Main motor first head: 30HP
  • Main motor second and third heads: 25HP
  • Maximum width stock: 51"
  • Minimum part size: 17"
  • Maximum thickness opening: 5"
  • Infeed loading area: 14"
  • Feed speed: 15-45 FPM
  • Approximate full load amps at 460 volt: 119
  • Passline height: 33-38"
  • Dust extraction: 5250 CFM (5" Static Pressure)
  • Compressed air usage: 8 CFM @ 90psi
  • Standard Features:

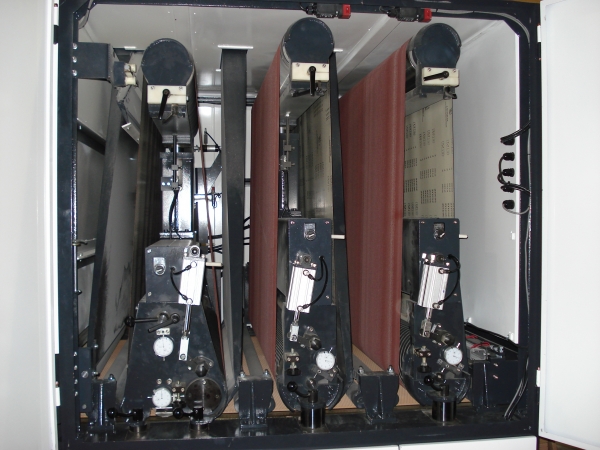

  • 8” Diameter Contact Drum: (1st & 2nd head positions)
  • Dual Action Segmented Sanding Heads: (3rd position)
  • Dual Infeed and Dual Outfeed Holddown Rolls
  • PLC Controller with HMI Interface
  • Air Operated Disc Brakes
  • Part Set-up Device
  • Infeed Stop Bar
  • Hour Meter
  • Centralized Control Panel
  • Main Motor Percentage Load Meter
  • Through-Beam Abrasive Belt Tracking
  • Dial Indicators on Adjustable Drum/Platen Heads
  • Motorized Thickness Adjustment
  • Quick Release Outboard Support
  • U.L. Listed Components
  • Variable Speed Conveyor Drive
