Timesavers Model 2321-24-06 Two Head 43" Segmented Widebelt/Polisher
Machine Available
Stock #70710N
New- Timesavers Model 2321-24-06 Two Head 43" Segmented Widebelt/Polisher
- Specifications:
- Abrasive belt size: 43 x 75"
- Main motor first head: 25HP
- Main motor second head: 20HP
- Maximum width stock: 42"
- Minimum part size: 6 x 6 with vacuum bed
- Maximum thickness opening: 5"
- Infeed loading area: 14"
- Feed speed: 15-45FPM
- Approximate full load amps at 460 volt: 94
- Passline height: 33-38"
- Dust extraction: 3500 CFM (5" Static Pressure)
- Compressed air usage: 6 CFM @ 90psi
- Addt’l compressed air usage for belt blow-off: 41 CFM@ 90 psi
- Standard Features:
- 8"Diameter Contact Drum (First Head)
- Dual Action Segmented Sanding Heads
- A.C. Variable Frequency Main Drive Motor: (2nd head)
- Abrasive Belt Blow-Off On Second Head
- Dual Infeed and Dual Outfeed Holddown Rolls

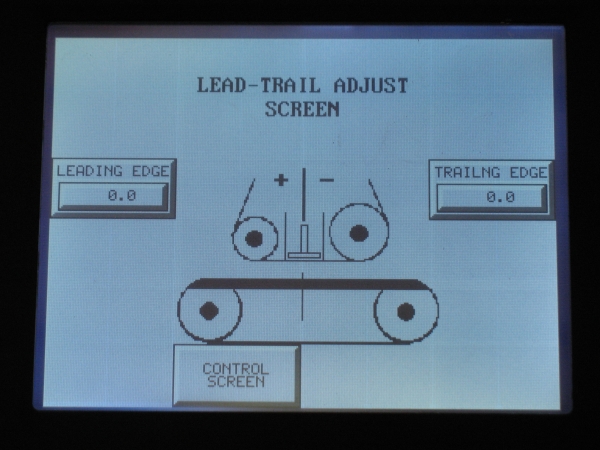

- PLC Controller with HMI Interface
- Panel Cleaning Brush
- Air Operated Disc Brakes
- Part Set-up Device
- Infeed Stop Bar
- Hour Meter
- Centralized Control Panel
- Main Motor Percentage Load Meter
- Through-Beam Abrasive Belt Tracking
- Dial Indicators on Adjustable Heads
- Motorized Thickness Adjustment
- Quick Release Outboard Support
- Vacuum Conveyor Bed
- U.L. Listed Components
- Variable Speed Conveyor Drive
