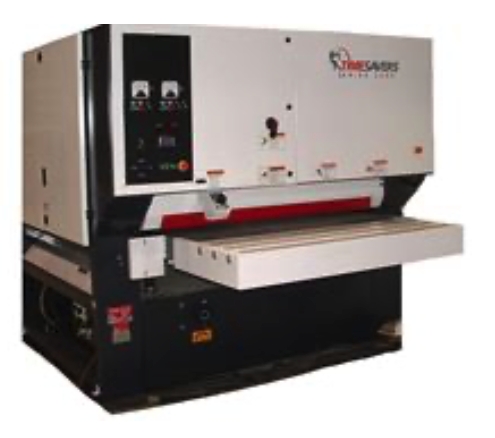

Timesavers Model 3321-25-20 Two Head High Production Planer/Sander
Machine Available
Stock #70730N
New- Timesavers Model 3321-25-20 Two Head High Production Planer/Sander
- Specifications:
- Abrasive size: 52" x 75"
- Main motors: 40, 30HP
- Maximum width stock: 51"
- Minimum part length measured roll to roll: 19"
- Maximum thickness opening: 6"
- Minimum finish thickness with planer head: 1/2"
- Infeed loading area: 30"
- Feed speed: 15-45 FPM
- Approximate full load amps at 460 volt: 129
- Passline height: 32-38" variable
- Dust extraction: 3660 CFM (5” static pressure)
- Compressed air usage: 4 CFM @ 90psi
- Standard Features:

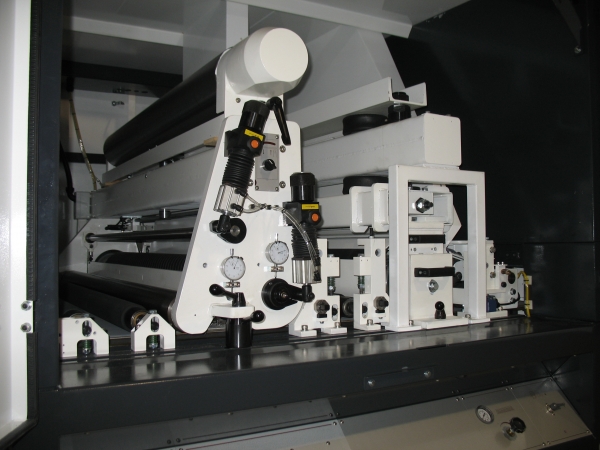

- 7” Diameter HD Knife Head: (first head position)
- Drum Head: (second head position)
- Infeed Stop Bar
- Infeed Roller Table
- Anti-Kickback Assembly
- Air Loaded Sectional Infeed Shoe
- Holddown Shoes and Rolls
- Air Operated Disc Brakes
- Centralized Control Panel
- Dial Indicators on Adjustable Knife/Drum heads
- Air Pop Up on Drums
- Quick Release Outboard Support
- Main Motor Percentage Load Meter
- Hour Meter
- Four Jack Bed Construction
- Motorized Thickness Adjustment
- Electronic Go-To Device
- Variable Speed Conveyor Drive
- Through-Beam Abrasive Belt Tracking
- U.L. Listed Components
- Knife Head Maintenance Kit
- Cutter Head Maintenance Stand
- Factory Start-up and Training
