Timesavers Model 3341-23-2001 Four Head 52" High Production Planer/Sander
Machine Available
Stock #71210N

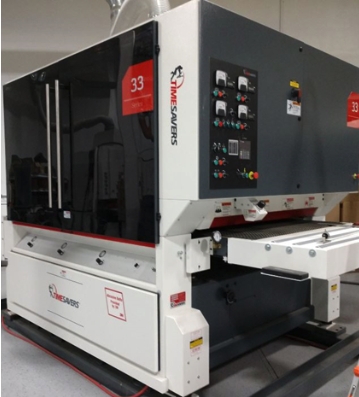

New- Timesavers Model 3341-23-2001 Four Head 52" High Production Planer/Sander
- Specifications:
- Abrasive belt size: 52 x 75"
- Main motors: 40, 30, 25, 25HP
- Maximum width stock: 35"
- Minimum part length roll to roll: 20.5"
- Maximum thickness opening: 6"
- Minimum finished thickness with planer head: 1/2"
- Infeed loading area: 30"
- Feed speed: 15-45 FPM
- Passline height: 32-38"
- Dust extraction: 5765 CFM (5" static pressure)
- Compressed air usage: 6 CFM @ 90psi
- Standard Features:
- 7” Diameter HD Knife Head: (first head position)
- Contact Drum Head: (second and third head position)
- Dual Action Sanding Head: (forth head position)
- Infeed Stop Bar
- Infeed Roller Table
- Anti-Kickback Assembly
- Air Loaded Sectional Infeed Shoe
- Holddown Shoes and Rolls
- Air Operated Disc Brakes
- Centralized Control Panel
- Dial Indicators on Adjustable Knife/Drum heads
- Air Pop Up on Drums/Platens
- Quick Release Outboard Support
- Main Motor Percentage Load Meter
- Hour Meter
- Four Jack Bed Construction
- Motorized Thickness Adjustment
- Electronic Go-To Device
- Variable Speed Conveyor Drive
- Through-Beam Abrasive Belt Tracking
- U.L. Listed Components
- Knife Head Maintenance Kit
- Cutter Head Maintenance Stand
- Factory Start-up and Training
