Timesavers Model 3311-45-6 Standard Single Head 52" Widebelt/Polisher
Machine Available
Stock #69250N

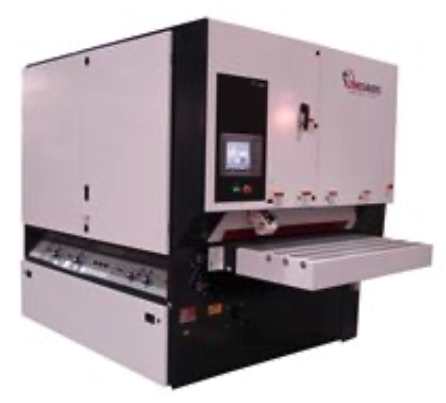

New- Timesavers Model 3311-45-6 Standard Single Head 52" Widebelt/Polisher
- Specifications:
- Abrasive belt size: 52 x 103"
- Main motor: 30 HP
- Maximum width stock: 51"
- Minimum part length with vacuum bed: 6"
- Maximum thickness opening: 6"
- Feed speed: 15-45 FPM
- Passline height: 32-38" variable
- Dust extraction: 2850 CFM (5” static pressure)
- 8 CFM @ 90 psi
- Addt’l compressed air usage for belt blow-off: 41 CFM @ 90 psi
- Standard Features:
- Segmented D/A Sanding Head
- 30 Horsepower Main Drive Motor
- Air Operated Disc Brakes
- Holddown Rolls
- PLC Controller with HMI Interface
- Dial Indicators on Adjustable Contact Drum Head
- Quick Release Outboard Support
- Main Motor Percentage Load Meter
- Infeed Stop Bar
- Hour Meter
- Four Jack Bed Construction
- Part Set-Up Device
- Motorized Thickness Adjustment
- U.L. Listed Components
- Panel Cleaning Brush
- Pop Up/Down on Contact Drum
- Variable Speed Conveyor Drive
- Abrasive Belt Blow-Off
- Vacuum Conveyor Bed
- A/C Frequency Drive on Sanding Head
- Factory Start-up and Training
