Weinig Luxscan C180 Scanner w/Opticut 450FJ+ & Opticut 450 Viper Optimizing Saws
Machine Available
Stock #8054

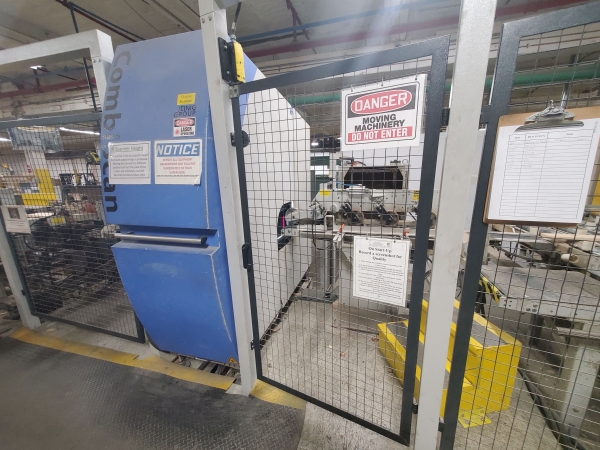

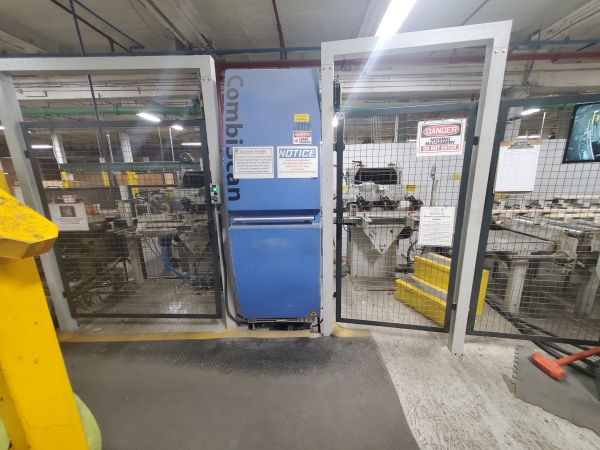

Used- Weinig Luxscan Combiscan C180 Scanner w/Opticut 450FJ+ & Opticut 450 Viper Optimizing Crosscut Saws with all Material Handling
- Scanner installed new in 2007 and Upgraded in 2012
- Production capacity: LF in eight (8) hours
- COMBSICAN capable for multiple width operation at scanner and saws.
- Multiple widths achievable existing automated movement of side camera
- Able to process up to 300' per minute

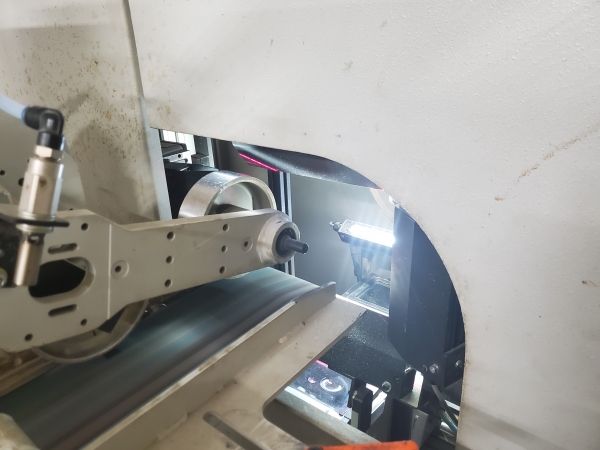

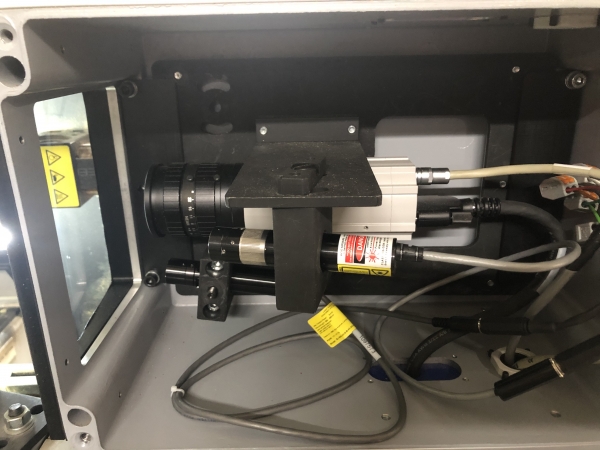

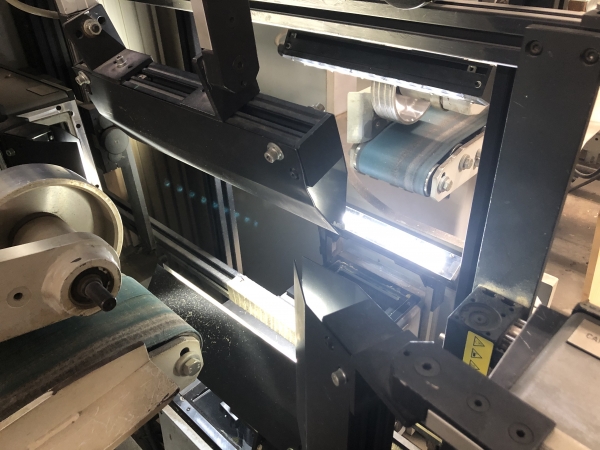

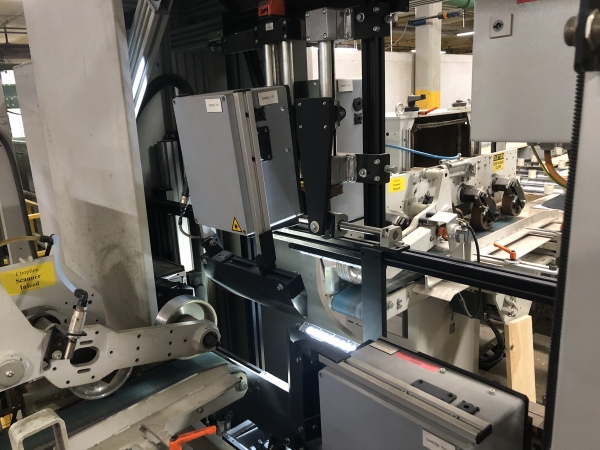

- 4 side detection with laser cameras – knots, pith, cracks, worm hole, wane, edge defects, etc.
- 4 side detection for color defects – high resolution for accuracy
- Angle cracks detection on top/bottom side

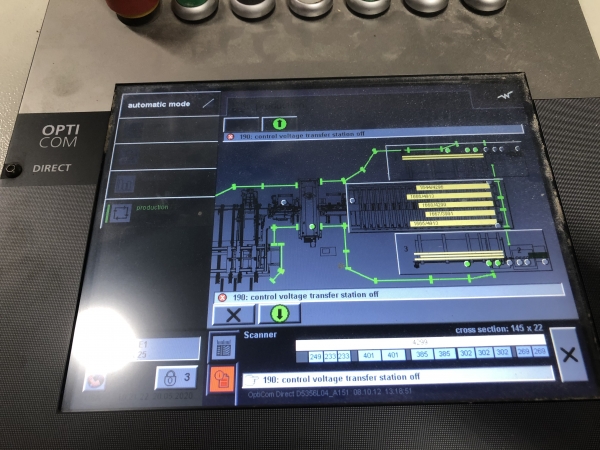

- Optimizing software included

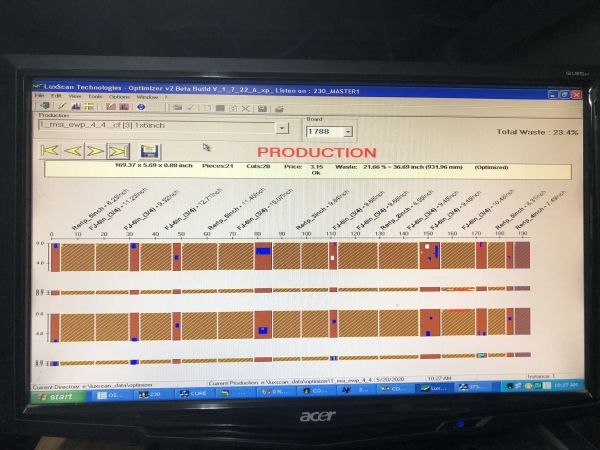

- LuxOptim Optimizes the Cut Solutions of the Board Depending on the Customers Requirements

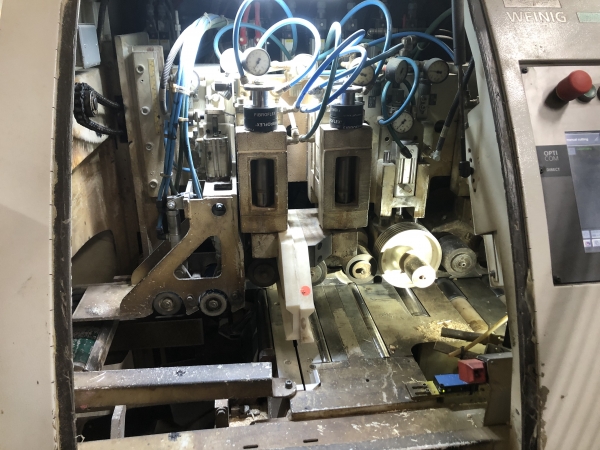

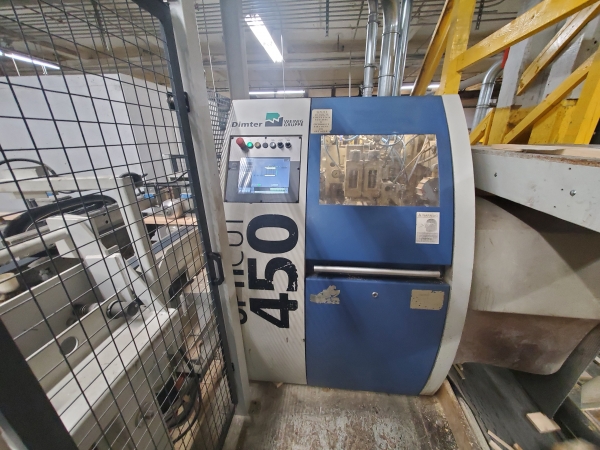

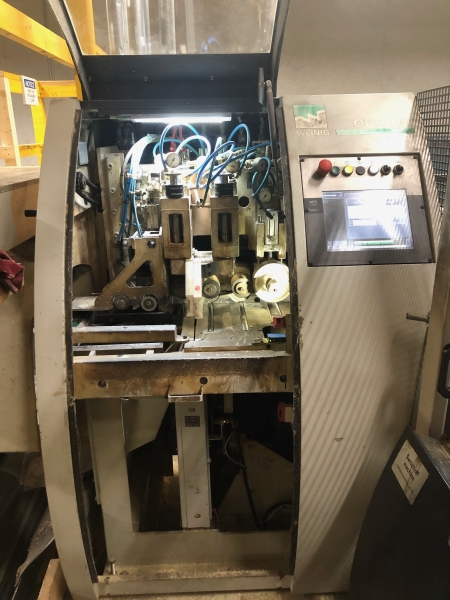

- Dimter Opticut 450 Viper Saw # 1 (Purchased New in 2007 and upgraded in 2012)
- 10HP, 480V, 3PH saw arbor motor
- 3600 RPM
- Blade Capacity: 500mm or 19.6"
- Opticut 450 FJ+ Right Handed Through feed Optimizing Saws - Saw # 2 (Purchased New in 2012)
- Each saw utilizes a 10HP Servo driven feed system allowing the saw to reach max acceleration of ft/min.
- Saw Cutting Capacities
- Incoming Board length: 24” minimum; 16’ 3” maximum
- Board thickness: 5/8” minimum; 4.5” maximum
- Board width: 1.625” minimum; 7.7/16” maximum
- Board out-feed length: 6” minimum; 16’ maximum

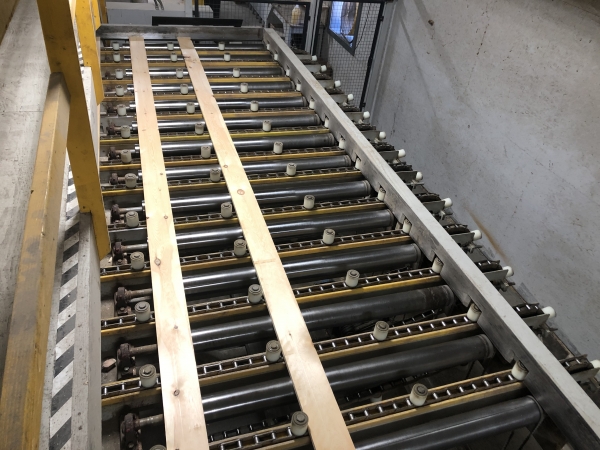

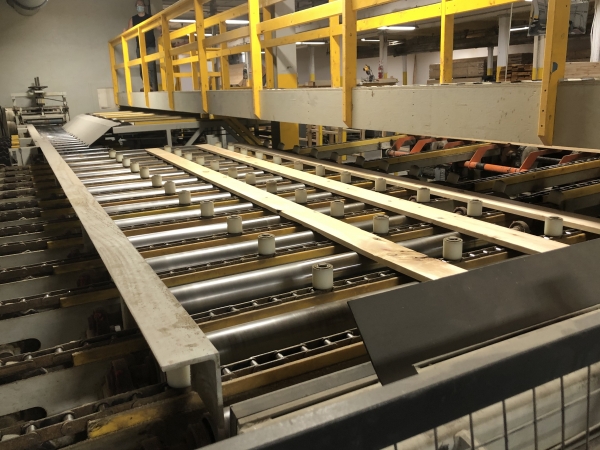

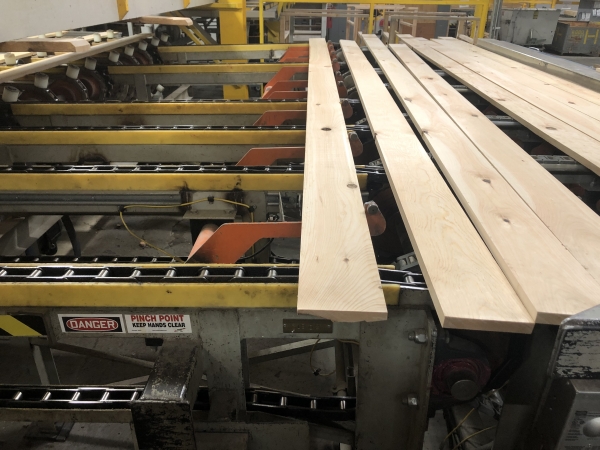

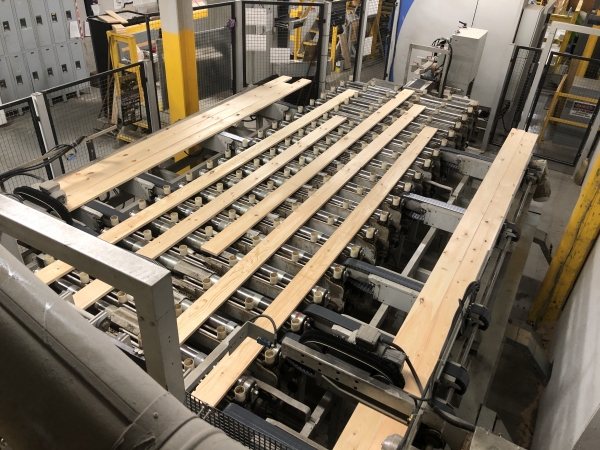

- Respective Material Handling Included: Dimter Powered Roll Conveyor 17'2" Long , Dimter Rake Conveyor 18'4" Long

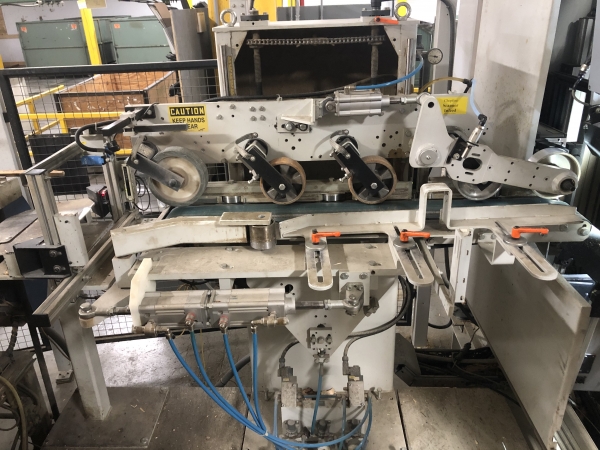

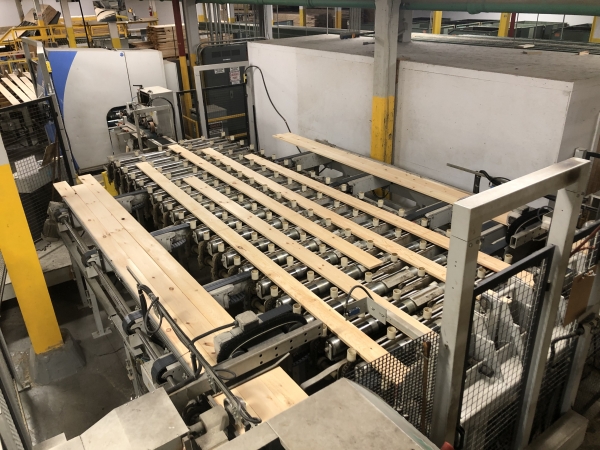

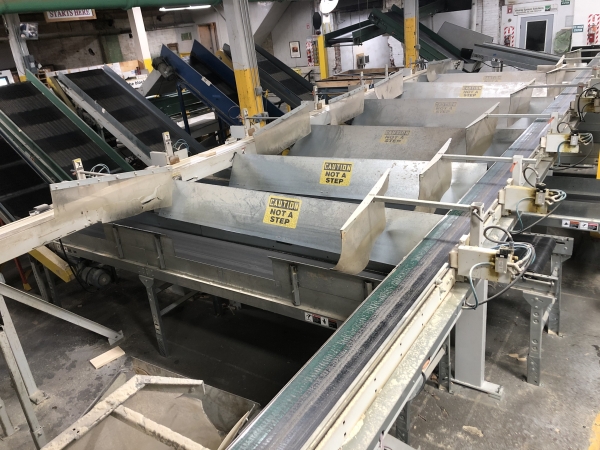

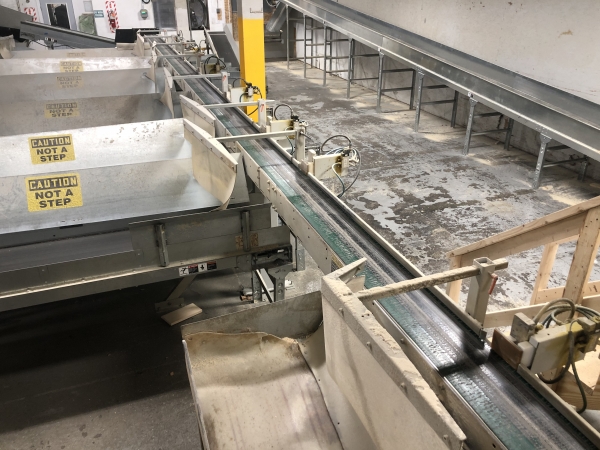

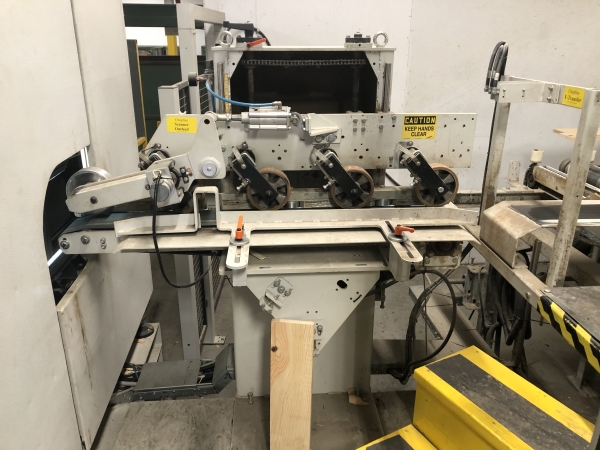

- Material Transfers to Dimter Scanner Chain in-feed System with one Pin Stop, Scanner in-feed belt, Scanner Out-feed belt, Dimter "Y" Transfer for feeding two saws, Dimter in-feed for each respective saw, Dimter out-feed Sort Belts with Eight(8) Pneumatic Kickers,
- Additional in Depth Details Available Upon Request
