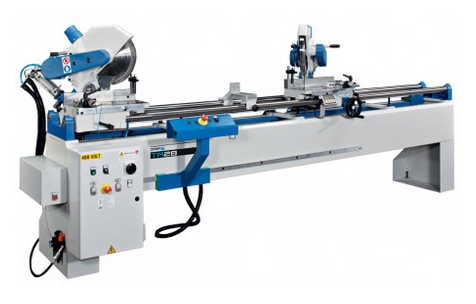

Omga Model TR 2B VIS

• Omga Model TR 2B VIS
• Data Sheet:
• Max Distance Between Saws: 9'2"
• Min Distance Between Saws: 23 5/8"
• Min. Distance Between Saws 45 deg: 23 5/8"
• Cross Cut Capacity 90 deg: 6 3/4"
• Cross Cut Capacity 45 deg: 4 1/2"
• Max. Depth of Cut: 4 1/4"
• Motor Power: 2 x 4HP
• Saw Blade Bore: 1"
• Saw Blade Diameter: 15"
• Arbor Speed: 3200
• Dust Port: 2 x 3 1/8"
• General Information:

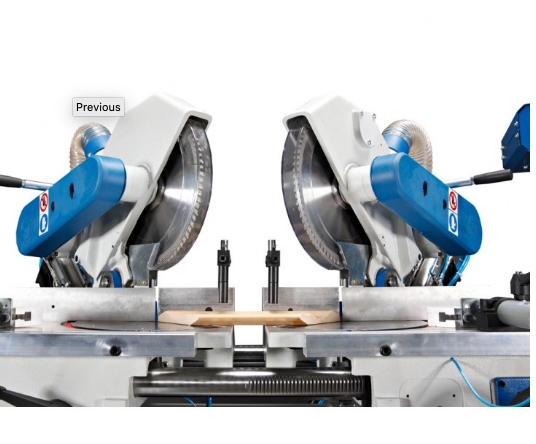

• Equipped with two heads one fixed on the left and one movable on the right
• Each head having positive mitering stops at +45,-45 and 90 degrees
• Controlled by an electro-pneumatic system which enables the operator to select between three automatic working cycles:
• 1) Simultaneous cycling of both blades
• 2) Alternate cycle allowing the machine to cut very short pieces at 45 degrees
• 3) Single head cycling
• Two standard pneumatic vertical clamps ensure the perfect stability of the workpiece
• Overload protection on each of the two main motors
• Options:
• Vertical or horizontal pneumatic clamps
• Extended cutting length 11' 4", 14' 7" and 18' available
• Brackets for short pieces
• Air over oil descent of the heads
• Spray mist system
