Elcon Model 185 DSXE Advance Automatic
Machine Available
$92,000.00 Stock #821310N

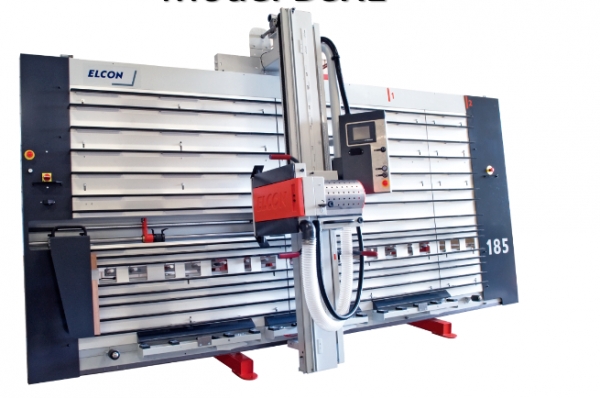

New- Elcon Model 185 DSXE Advanced Automatic
- Machine Overview
- Ridged, welded box steel frame with four vertical cutting positions
- Round upper guide rail with concave bearings for smooth operation
- Automatic movement of saw head in X and Y axis
- Automatic bottom reference cut
- 7.5hp motor
- 12” blade capacity
- Double-cut plunge scoring system; mechanically selectable w/auto execution
- Advance clamping system, 2 clamps for cutting height 1,700mm, clamping of 50mm thick
- Automatic shifting panel support grid
- Stepless variable speed
- Pneumatic plunge of saw head
- Pneumatic mid-fence
- Two pneumatic panel clamps on bottom
- Measuring stop extension
- Digital scale vertical and horizontal
- Both English and metric scales standard
- Saw head is counter balanced with chain & safety chain
- Built-in dust shroud with pipe ready for dust collection
- Safety interlocks throughout machine
- Compressed Air Curtain
- Horizontal cutting capacity: 163”
- Vertical cutting capacity: 69”
- Motor: 7.5 hp, 3 phase
- Blade size: 12” (included)
- Requirements:
- Electrical connection: 26 amps @ 220 volt, 3 phase
- Air: 90 psi
- Dust Collection: One 4 ¾”, one 4” connection @ 1900 cfm
