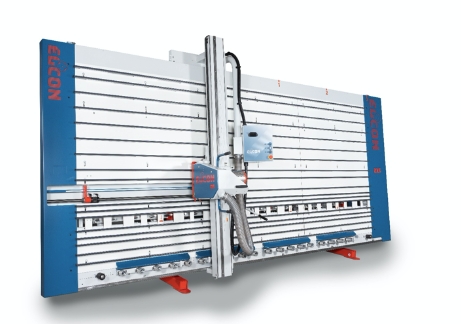

Elcon Model 185 DS Vertical Panel Saw

• Elcon Model 185 DS Vertical Panel Saw
• Standard Accessories
• Heavy duty horizontal carrying modules
• Robust, fine-adjustable measuring stop
• Mechanical locking of the saw-head for horizontal cuts
• Repeat-stop for easy and simple strip cutting
• Programming rail for repetitive horizontal dimensions
• Mid-fence in 3 segments for 3 meter support
• Entry and exit roller to load / unload the panels
• Double cut scoring with the main blade for scoring and grooving
• Mechanical plunge of the saw-head
• Fixed bottom blocks for stable panel support
• Fault diagnostics
• Technical data:
• Max. cutting length 4.300mm.
• Max. cutting height horizontal 1.810 mm.
• Max. cutting height vertical 1.850mm.
• Max. cutting depth 55 mm.
• Motor (400/50/III+0 S6) 3 kW
• Saw-blade diameter 250 mm.
• Speed of saw-blade 5.100 rpm.
• Necessary air pressure 6-8 bar
• Included Recommended Options:
• Motor 4 kW (400/50/III+0 S6)
• Automatic pneumatic lifting backframe
• Aluminum bottom rollers with pneumatic clamp
• Measuring Stop Extension
• Extra Dust Extraction at right side of frame
• Additional Options (price not included):
• Motor 4 kW (400/50/III+0 S6)
• 2-speed motor
• Variable rotation speed motor
• Pneumatic mid-fence
• Pneumatic lifting transport rollers
• Pneumatic panel clamp
• Extra pneumatic panel clamp
• Extension to measuring stop
• Extra support for small pieces
• Cutting length 4.300 mm (type 155/185)
• Cutting length 5.300 mm (type 215)
• Extra -1 meter point
• Digital read out for horizontal cuts
• Digital read out for vertical cuts
• Positioning module for vertical cuts
• Panel tilting ruler for small panels
• V-grooving set 90°
• Lubrication for non-ferro materials
