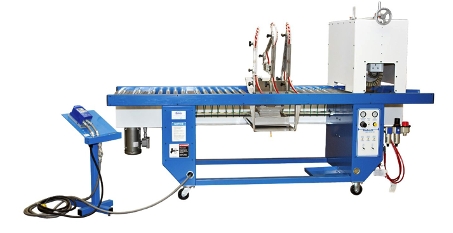

Dubois Model SP-12 Portable Lineal Spray Machine

• Dubois Model SP-12 Portable Lineal Spray Machine
• Overview
• The Dubois SP-12 Linear Spray Machine is an automated lineal finishing machine that can be used for a variety of applications including priming, staining, sealing, lacquering, etc. of linear stock. Without the optional exhaust system, the machine must be used in a functional spray booth. Standard Features
• Formed and tubular steel frame, powder coated
• Top roller hold-down on infeed table
• Infeed guide fences
• ½ hp gear reduced AC motor with variable speed live roll conveyor
• Capable of one gun circuit (three guns available as options)
• Three gun arms included on all machines
• Ability to enable/disable individual guns
• Air regulator for adjusting atomization pressure with atomizing air line for each gun
• Air regulator for adjusting fluid pressure
• Pneumatic gun triggering mechanism, whisker sensor and pneumatic on/off timers
• One easily cleaned spray trough
• Specifications
• Maximum part width – 12”
• Minimum part length – 30”
• Maximum part height – 3”
• Maximum line speed – 150 FPM
• Exhaust (with exhaust option only) – 15” diameter
• Optional Add-Ons
• Binks fluid delivery system: (1) circuit, includes
• (1) Medium pressure pump
• (3) Binks automatic air assisted airless spray guns with HVLP aircap
• (3) Tips
• (1) Fluid filter, medium pressure
• (1) Fluid regulator, medium pressure
• Pickup and return tubes, hoses and connections for return
• Graco fluid delivery system: (1) circuit
• Kremlin fluid delivery system: (1) circuit
• Short parts transfer Minimum part length – 14”
• Stain wipe station
• Stain wipe cleaning station
• Exhaust system Spray enclosure, variable speed exhaust fan and filter system
• Single High-Pressure Fluid Regulator Aids in the removal of pump wink during pump cycle
• Right hand machine conversion
• Replacement Parts Package
