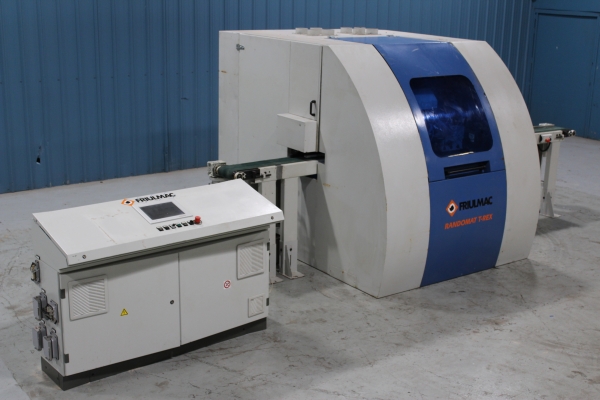

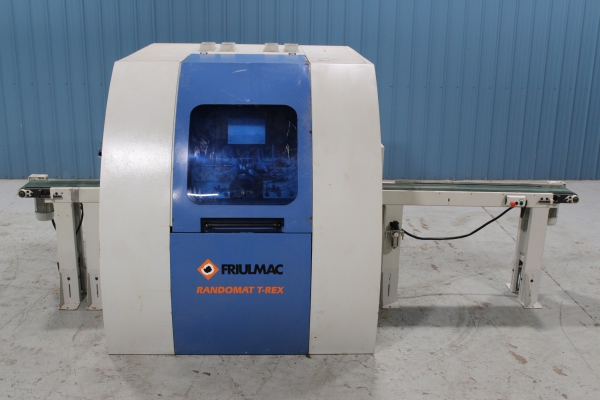

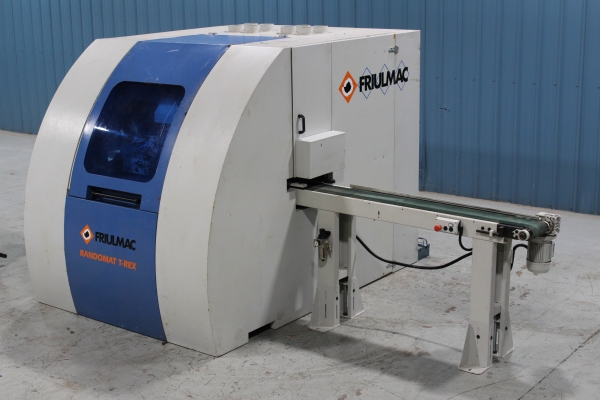

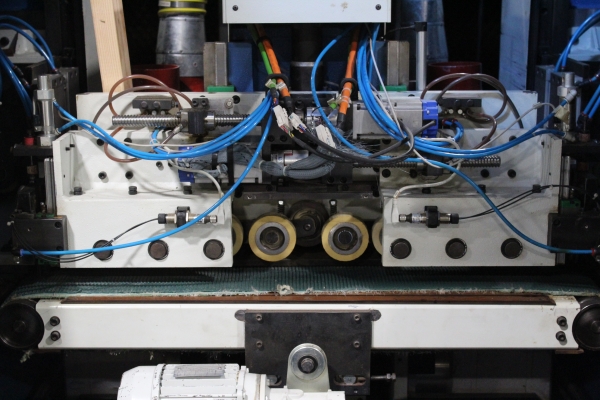

Friulmac Randomat Multirex End Matcher, with Stackable Spindles for Fast Change-Over
Machine Available
Stock #2637
Used- Friulmac Randomat Multirex End Matcher, with Stackable Spindles for Fast Change-Over
- Two Profiling Motors: 10 HP (7.50KW)
- Two Tool Changer Motors: 0.5 HP (0.25KW)

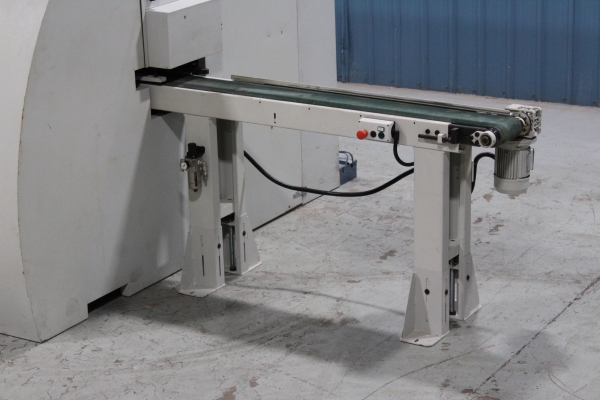

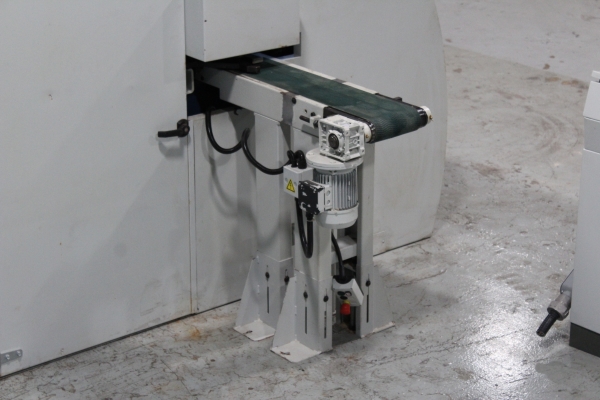

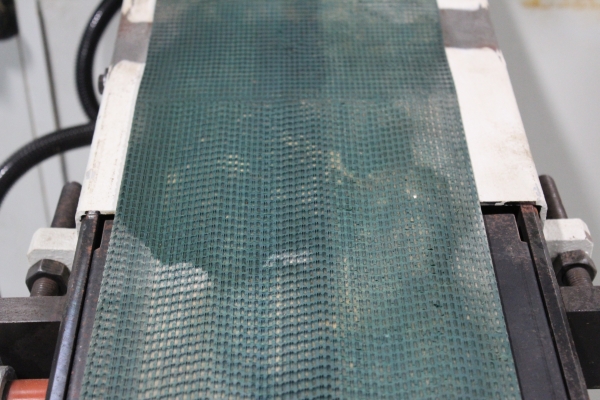

- Two Infeed/Outfeed Conveyor Belt Motors: 1.5 HP (1.10 KW)

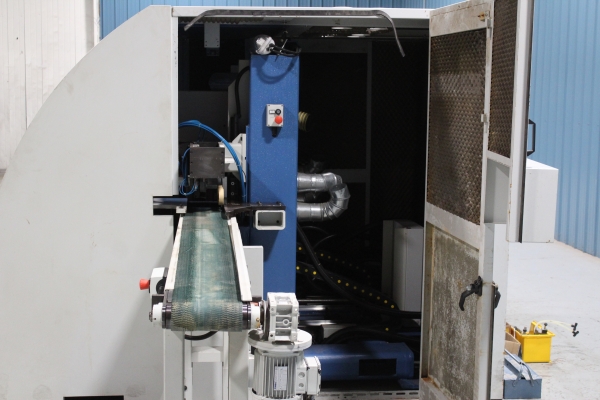

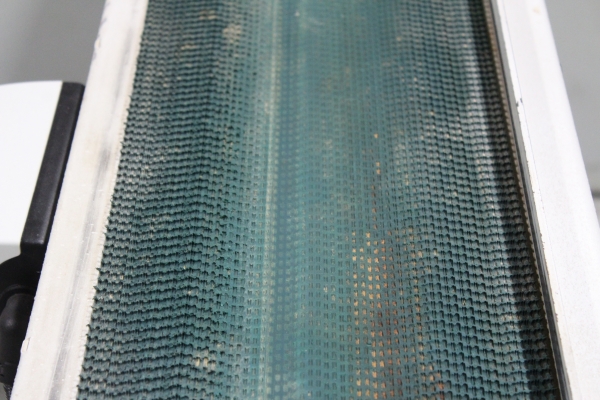

- Central Conveyor Belt: 3/4 HP (0.55KW)
- Minimum Part Length: 4-7/8" (120mm)
- Minimum Part Width: 1-3/16" (30mm)
- Maximum Part Width: 9-7/8" (250mm)
- Minimum Part Thickness: 1/2" (10mm)
- Maximum Part Thickness: 1-3/16" (30mm)
- Minimum Cutter Diameter: 6-5/8" (170mm)
- Maximum Cutter Diameter: 7-7/8" (200mm)

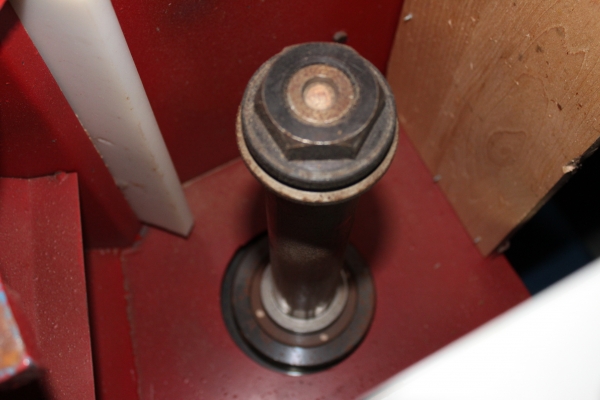

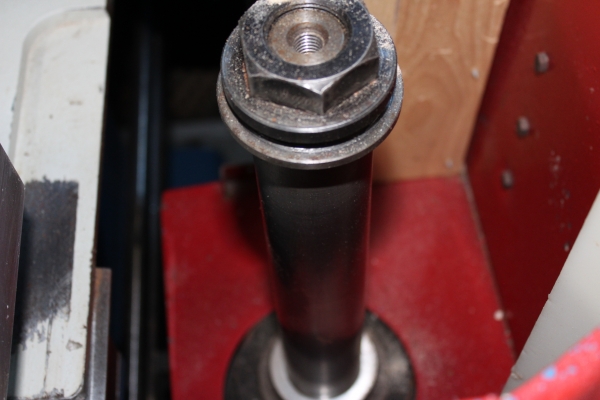

- 50MM Diameter Spindles

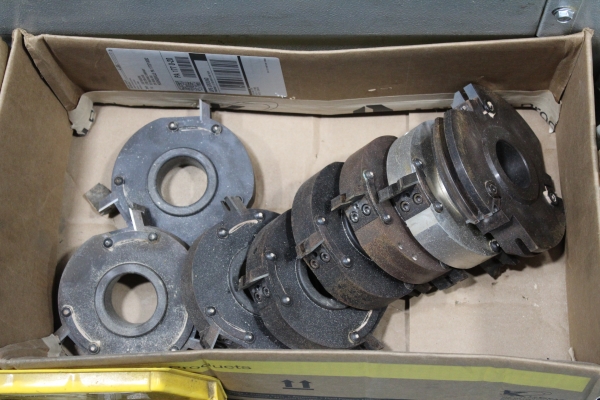

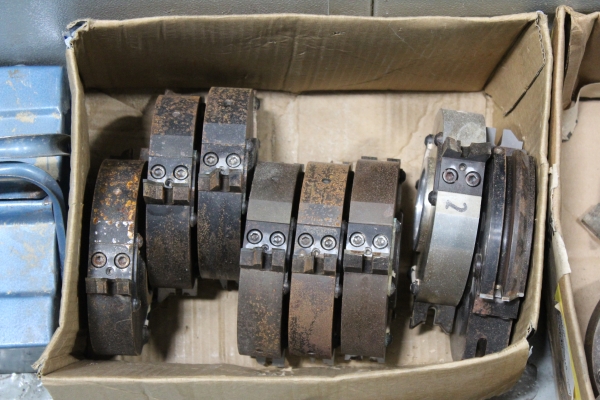

- 11-1/4" (285mm) Spindle length under the nut for stackable tooling
- Cutter Speed 9,000 RPM
- Four 4-3/4" Dust Ports for each spindle(2 on the top and 2 on the rear side)
- Serial #: 3953A
- Current Voltage: 460V
