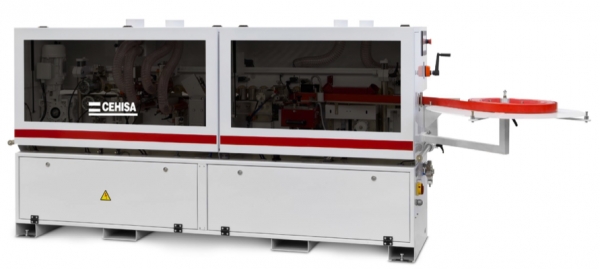

Cehisa Model Compact PS with Duomelt Gluepot

• Cehisa Model Compact PS with Duomelt Gluepot
• General Specifications:
• CEHISA edgebanders are universally known for their robustness, ease of use and adjustment
• Pre-Milling Station PF-2
• Duomelt Gluepot- Allowing the use of both EVA and PUR
• TEFLON-Coated Glue Unit w/ Electronic Thermostat Control
• Two-Roll Pressure Section
• End-Trimming Station V-3
• Glue Scraper RR-8
• Buffing Unit PC-3
• Polymer Coated Feed Chain
• Pressure-Beam with Rubber Wheels
• 7” User-Interface
• Working Speed: 10 mts/min. (18ft/.min.)
• Thickness of Edgebanding: 0.4 – 3mm
• Solid Wood Strips Up to 5mm
• Thickness of the Panel 8 – 60 mm (0.32”-2.36”)
• Min. Length of Panel: 120mm (4.72”)
• Min. Width of Panel: 75 mm (2.95”)
