Oliver 10047.002 Shaper 5HP 1Ph
Machine Available
Stock #931700N

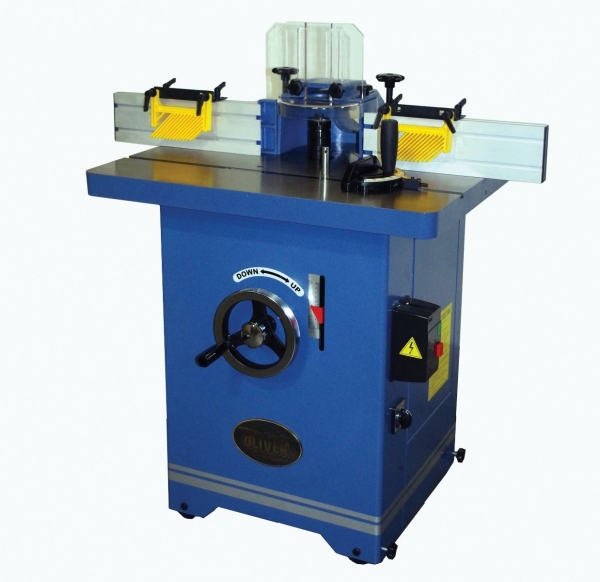

New- Oliver Model 10047.002 Shaper 5HP 1Ph
- Large cast iron table is precision ground table to provide a solid work surface.
- Table features pre-drilled and threaded holes for optional power feeder.
- Full cabinet stand includes wheels and locks.
- 1-1/4” interchangeable spindle included, other optional sizes available.
- Optional router bit collets available.
- Four spindle speeds for versatility
- Belt changes are quick and convenient with unique tensioner.

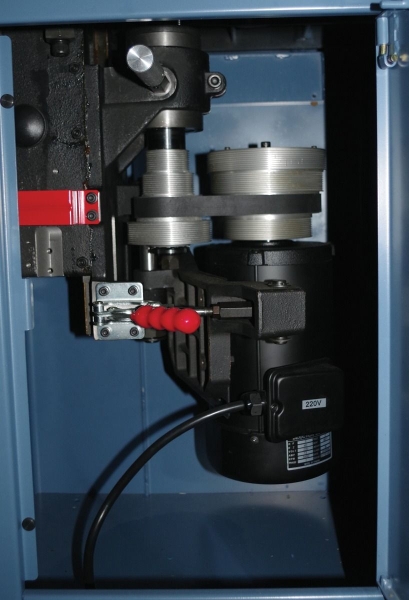

- Poly V-belt drive for smoother operation.
- Spindle reverses for more options with each set-up.
- Four inches of spindle travel allows more set-up options.
- Starting pin for irregular shapes included.

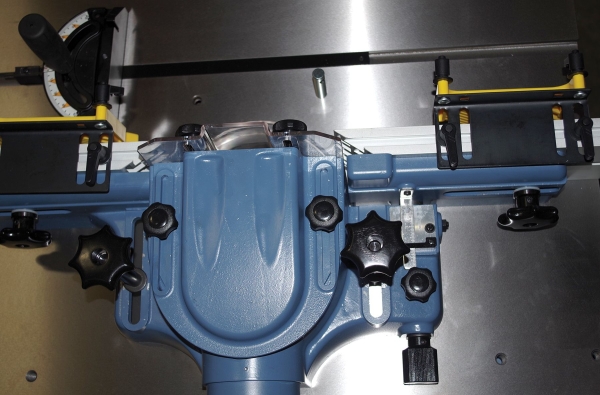

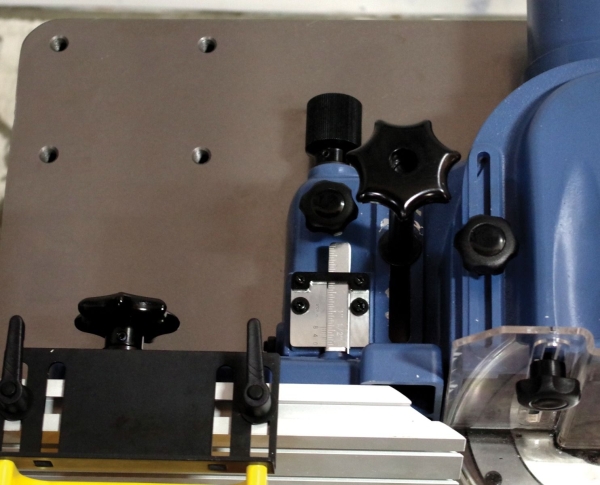

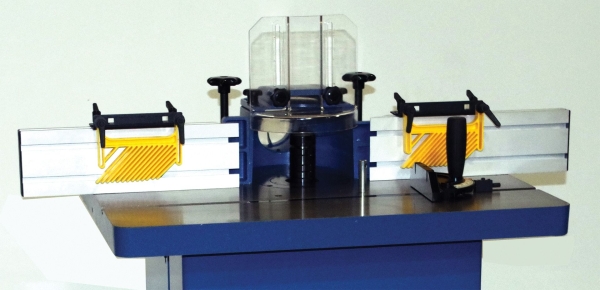

- Fence is independent and includes micro adjustments.
- Adjustable hold downs add to a safer operation.
- Extra large handwheel for easy and quick height adjustment.
- Miter gauge included.
- Magnetic controls for added safety.
- Spindle Speeds 4,000, 6,000, 8,000, 10,000 RPM
- Spindle Diameter: 1-1/4”
- Verticle Spindle Travel: 4"
- Spindle Direction: Reversible
- Under Nut Capacity: 4” with 1-1/4” Spindle
- Table Opening: 6-1/4"
- Large Insert Opening: 4-5/16”
- Small Insert Opening: 2-1/2”
- Table Height 34-3/8”
- Table Size 32” x 26”
- T-Slot: 3/4” x 3/8”
- Fence Size (2): 4-13/16” x 16”
- Dust Port Diameter 4"
- Minimum CFM: 800
- Table Dimensions 40” x 27”
