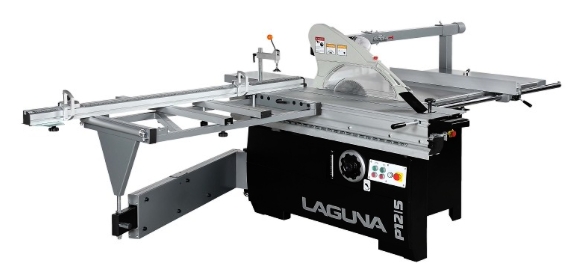

Laguna Model P12/5 Sliding Table Saw

• Specifications
• Motor: 5HP Main
• Motor: 3/4 HP Scoring
• Blade Capacity: 12 , 14 /300mm, 355mm
• Max. Blade: 14 /355mm (minimum height when lowered: 1 /25mm)
• Max Scoring Blade: 4 3/4 /120mm
• Scoring Adjustment: T-Handle through Cast Top
• Arbor: 30mm Main, 20mm Scoring
• Max Cutting Height 90° 14 /355mm Blade: 4 1/2 /115mm
• Max Cutting Height 90° 12 /305mm Blade:3 1/2 /90mm
• Max Cutting Height 45° 14 /355mm Blade: 2 3/4 /70mm
• Max Cutting Height 45° 12 /305mm Blade: 2 3/8 /62mm
• Main Blade Speed: 4000 RPM
• Scoring Blade Speed: 8000 RPM
• Dust Collection Port Saw: 4 /100mm
• Dust Collection Port Guard: 2 1/2 / 63mm
• Sliding Table: 63 /1600mm
• Sliding Table Width: 14.88 /378mm
• Main Cast Table: 21 1/2 x 35 1/4
• Rip Fence: 51 /1300mm
• Rip Fence Micro Adjust: Included
• Rip Fence Bar: 1 5/8 /40mm Solid Steel Micro Polished
• Push Handle: Included
• Rip Shoe: Included
• Hold Down Clamp: Included
• 32 x 12 Steel Extension Table: Included
• Crosscut Fence 2 x Flip-Stops
• Crosscut Fence Readout: Inch/Metric
• Crosscut Fence Max. Collapsed: 77
• Crosscut Fence Max. Extended: 140
• Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
