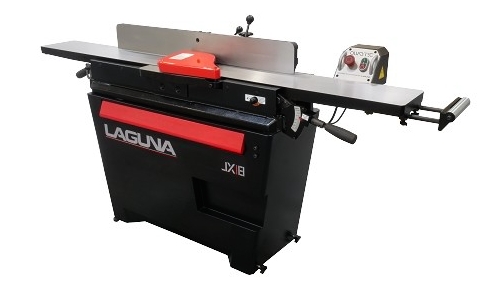

Laguna Model JX\8 QuadTec Jointer

• Laguna Model JX\8 QuadTec Jointer
• All-new for 2021, the Laguna JX/8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable.
• Machine Specifications
• Motor: 110v 1.75HP 1phase 60hz/15 Amp.
• CSA: Yes
• Bed Size: 8 x 72"
• Infeed Table Pull-out Extension: 8"
• Rabbeting Capacity: 1/2"
• Fence Size: 38" x 4-3/4" Cast Iron
• Fence Tilt: ±45/90°
• Max. Depth of Cut: 1/8"
• Table height from floor: 31"
• Safety bar shut-off: Yes
• Bracket to mount Light: No
• 110V outlet for light: No
• Bracket to mount Feeder: No
• Dust Port Diameter: 4"
• Built-in infeed extend plastic roller 8”
• Magnetic Switch: Yes (B/W)
• Cutterhead Insert #: 20 x 4-sided Carbide, 4 Row
• Cutterhead RPM: 5500
• Cutterhead Diameter: 3-1/8"
• Bed Adjustment: Parallelogram
• Plug NEMA 5-15P
