Laguna Model JX\8 ShearTec Jointer Single Phase

Machine Available
Stock #331430N
New
   CALL FOR PRICE

  • Laguna Model JX\8 ShearTec Jointer Single Phase
  • All-new for 2021, the Laguna JX\8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable.
  • Machine Specifications
  • Motor: 220v 3HP 1phase 60hz/12 Amp.
  • CSA: Yes
  • Bed Size: 8 x 72"
  • Infeed Table Pull-out Extension: 8"
  • Rabbeting Capacity: 1/2"
  • Fence Size: 38"x 4-3/4" Cast Iron
  • Fence Tilt: ±45/90°
  • Max. Depth of Cut: 1/8"
  • Table height from floor: 31"
  • Safety bar shut-off: Yes
  • Bracket to mount Light: No
  • 110v outlet for light: No
  • Bracket to mount Feeder: No
  • Dust Port Diameter: 4"

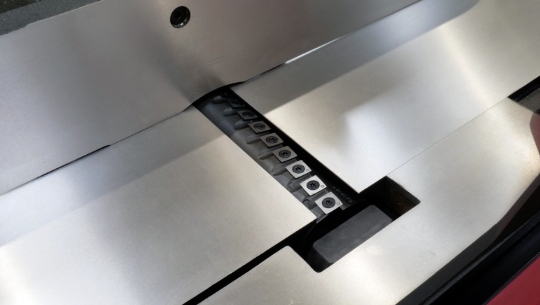

  • Cutterhead Insert #: 54 x 4-sided Carbide, 6 Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 3-1/8"
  • Bed Adjustment: Parallelogram
  • Built-in infeed extend plastic roller 8"
  • Magnetic Switch: Yes (B/W)
  • Plug NEMA 6-20P
